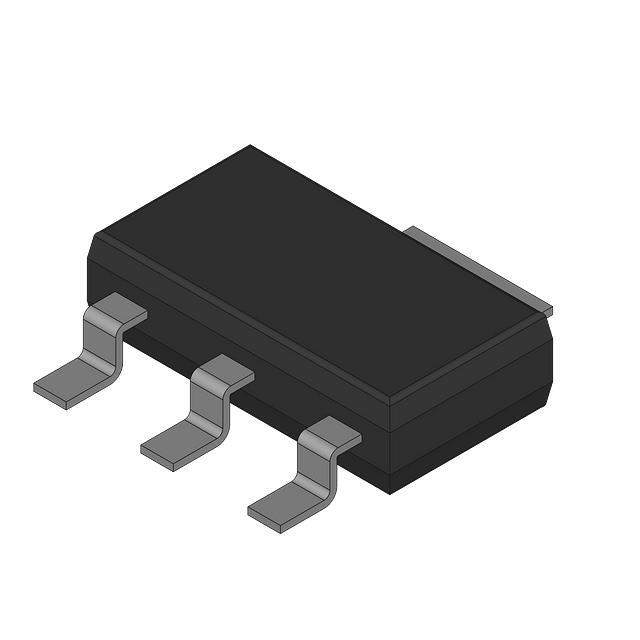

NZT749 Real Image
Same model may have multiple batches, images only for reference.

NZT749

Part No NZT749
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS PNP 25V 4A SOT-223
Datasheet
NZT749 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 4A
VCEO Maximum Collector-Emitter Breakdown Voltage 25V
Max Vce (sat) 300mV @ 100mA, 1A
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 80 @ 1A, 2V
Maximum Power Dissipation 1.2W
Frequency - Transition 75MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223-4
Win Source Part Number 060745-NZT749
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NZT749 CAD Model

Description

The NZT749 is a PNP transistor manufactured by Fairchild/ON Semiconductor.

  • Status: obsolete
  • Supply and Demand Status: limited
  • Maximum Collector-Emitter Breakdown Voltage: 25V
  • Maximum Current Collector: 4A
  • Ideal for: various applications that require a PNP transistor.
