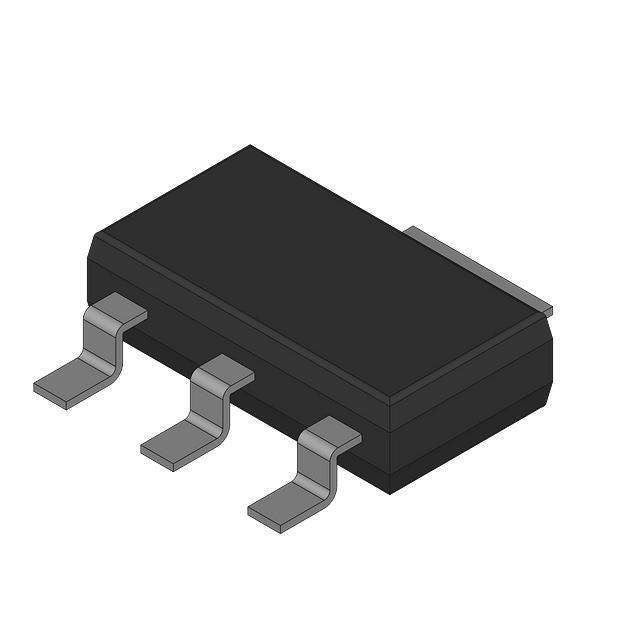

PZTA92

Name: PZTA92
Brand: Fairchild/ON Semiconductor
SKU: 285124
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PZTA92
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors (BJT) - Single
Description	TRANS PNP 300V 0.5A SOT223
Datasheet	PZTA92 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	ON Semiconductor
Packaging	Reel - TR
Status	Active
Transistor Polarity	PNP
Maximum Current Collector	500mA
VCEO Maximum Collector-Emitter Breakdown Voltage	300V
Max Vce (sat)	500mV @ 2mA, 20mA
Collector Cut-off Current(Max)	250nA (ICBO)
Typical Gain (hFE) (Min)	40 @ 30mA, 10V
Maximum Power Dissipation	1.5W
Frequency - Transition	50MHz
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOT-223
Win Source Part Number	062255-PZTA92
Family Name	PZTA92
Introduction Date	July 15, 2005
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2019
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Power Management, Computers & Computer Peripherals, Industrial
Ultra Librarian 3D Model	Ultra Librarian PZTA92 CAD Model

Alternative Products

Description

The ON Semiconductor PZTA92 is an active discrete semiconductor product that is commonly used in power management, computers, and computer peripherals.

Maximum Current Collector: 500mA
Maximum Power Dissipation: 1.5W
Maximum Collector-Emitter Breakdown Voltage: 300V
Typical Gain (hFE): 40 @ 30mA and 10V
Case: SOT-223
Operating Temperature Range: 150 degrees Celsius
Halogen-Free Compliant: Yes
Packaging: Reel
