Same model may have multiple batches, images only for reference.

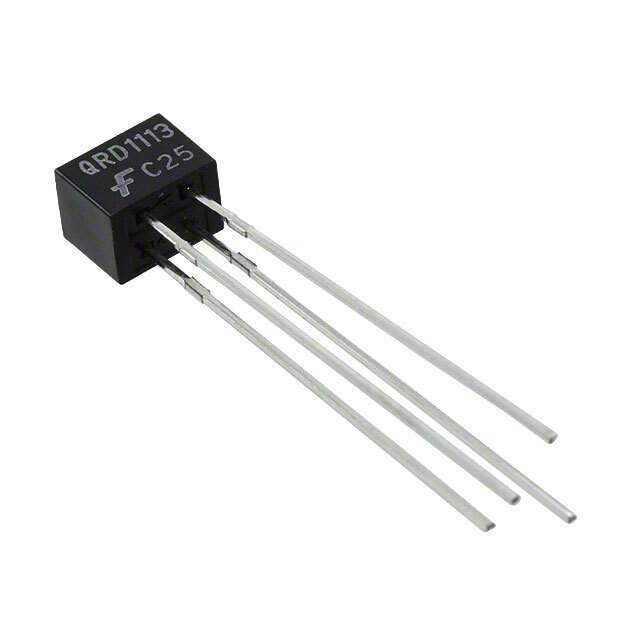

QRD1113 Real Image
Same model may have multiple batches, images only for reference.

QRD1113

Part No QRD1113
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Reflective - Analog Output
Description Photointerrupter Reflective Phototransistor 4-Pin Bag / SENSR OPTO TRANS 1.27MM REFL PCB
Datasheet
QRD1113 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Active
Sensing Distance 0.050" (1.27mm)
Sensing Method Reflective
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Continuous forward current- Max 50mA
Output Type Phototransistor
Response Time 10μs, 50μs
Mounting Through Hole
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 210457-QRD1113
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Sensing & Instrumentation
Quantity per package 100
Family Name QRD1113
Introduction Date September 30, 1999
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian QRD1113 CAD Model

Description

The QRD1113 is a reflective sensor that contains an infrared emitting diode and a phototransistor in a leaded package.

  • Sensing Method: Reflective
  • Sensing Distance: 0.050" (1.27mm)
  • Output Type: Phototransistor
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Continuous Forward Current-Max: 50mA
  • Response Time: 10μs, 50μs
  • Operating Temperature Range: -40°C to 85°C
  • Standard Compliance: Halogen-free
  • Applications: Sensing and instrumentation
  • Popularity: High
  • Supply and Demand Status: Limited
