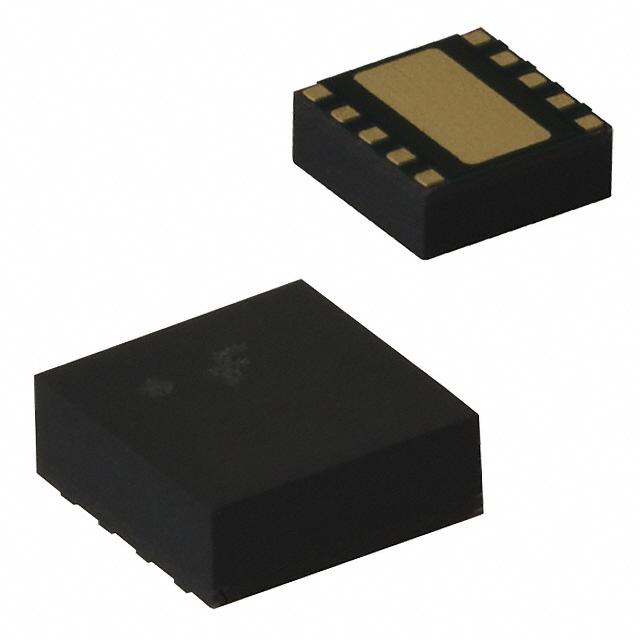

Same model may have multiple batches, images only for reference.
RMPA2259 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

RMPA2259

Part No RMPA2259
Manufacturer Fairchild/ON Semiconductor
Catalog RF Amplifiers
Description IC MOD RF POWER AMP 10PIN 4X4LCC
Datasheet
RMPA2259 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 1.92GHz to 1.98GHz
Gain 24dB
Noise Figure 3dB
RF Type W-CDMA
Supply Voltage - Operating 3 V to 4.2 V
Operating Supply Current 50mA
Case / Package 11-LCC (4x4)
Win Source Part Number 124666-RMPA2259
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RMPA2259 CAD Model

Description

The RMPA2259 is a W-CDMA RF amplifier manufactured by Fairchild/ON Semiconductor.

  • Frequency Range: 1.92GHz to 1.98GHz
  • Gain: 24dB
  • Noise Figure: 3dB
  • P1dB: Not specified
  • Case/Package: 11-LCC (4x4)
  • Operating Supply Voltage: 3V to 4.2V
  • Current: 50mA
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Applications: RF/IF and RFID
