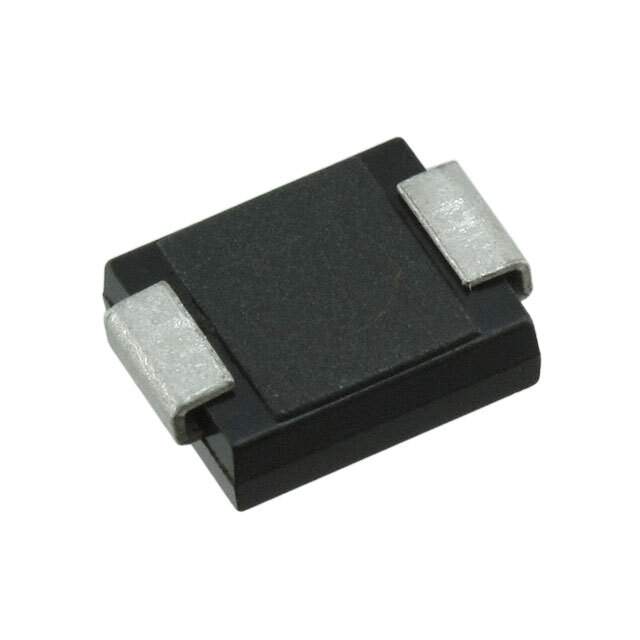

The SMCJ6V5CA is a surface-mount Transient Voltage Suppressor (TVS) diode manufactured by Fairchild Semiconductor, which is now part of ON Semiconductor. This TVS diode is designed to protect sensitive electronic components from voltage transients induced by various sources, including lightning, electrostatic discharge (ESD), and inductive load switching. This specific part is a bidirectional TVS diode, meaning it provides overvoltage protection in both directions.

Applications

• I/O Port Protection
• Data Line Protection
• Power Supply Protection
• Industrial Control Equipment
• Automotive Electronics
• Consumer Electronics

Features

• Surface Mount Package: Designed for automated assembly and efficient use of board space.
• Bidirectional: Protects against both positive and negative voltage transients.
• 3000W Peak Pulse Power Capability: Provides robust protection against high-energy transients.
• Glass Passivated Junction: Ensures reliable performance and stable characteristics.
• Low Leakage Current: Minimizes power consumption in normal operation.
• Fast Response Time: Quickly responds to transient voltage events.
• Excellent Clamping Capability: Limits the voltage across the protected circuit.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Enhanced System Reliability: Prevents damage from overvoltage conditions, increasing the lifespan of the equipment.
• Reduced Downtime: Minimizes equipment downtime caused by transient voltage events.
• Improved Product Safety: Protects electronic circuits from stress caused by overvoltage, improving safety.
• Simplified Design: Easier to implement than alternative protection schemes.
• Cost-Effective Solution: Offers a cost-effective way to protect electronic components from transient voltages.

Additional Details

The SMCJ6V5CA has a standoff voltage of 6.5V and a breakdown voltage around 7.22V. The clamping voltage is designed to keep the voltage across the protected component at a safe level during a transient event. It is packaged in an SMC (DO-214AB) package, suitable for surface mounting on printed circuit boards. The operating temperature range is typically from -65°C to +150°C. For specific electrical characteristics, such as peak pulse current (Ipp) and clamping voltage at specific test currents, consult the ON Semiconductor datasheet.
