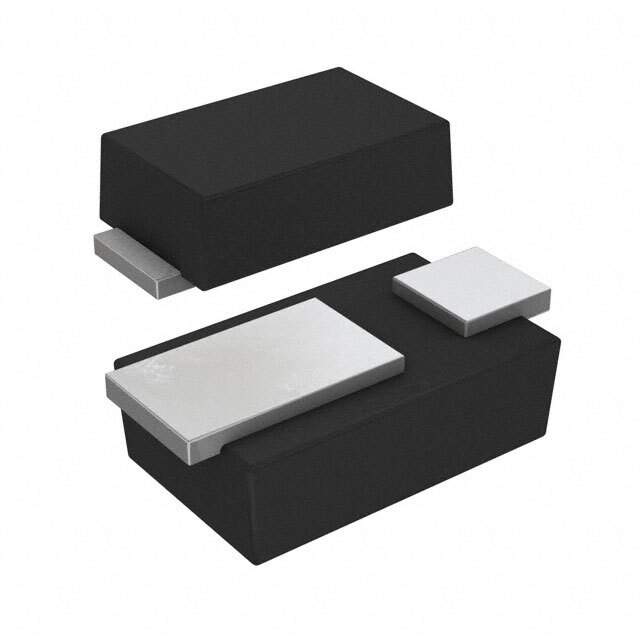

SS13HE Real Image
Same model may have multiple batches, images only for reference.

SS13HE

Part No SS13HE
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1A SOD323HE
Datasheet
SS13HE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 5.6ns
Current - Reverse Leakage @ Vr 50μA @ 30V
Capacitance @ Vr, F 55pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-323HE
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1102041-SS13HE
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SS13HE CAD Model

Description

The Fairchild/ON Semiconductor SS13HE is a Schottky diode that has a voltage DC reverse (Vr) of 30V and an average rectified current (Io) of 1A.

  • Voltage DC Reverse (Vr): 30V
  • Average Rectified Current (Io): 1A
  • Forward Voltage (Vf): 550mV @ 1A
  • Reverse Recovery Time (trr): 5.6ns
  • Reverse Leakage Current: 50μA @ 30V
  • Capacitance: 55pF @ 4V and 1MHz
  • Package: SOD-323HE
  • Temperature Range: -55°C to 150°C
  • Category: Discrete Semiconductor Products
