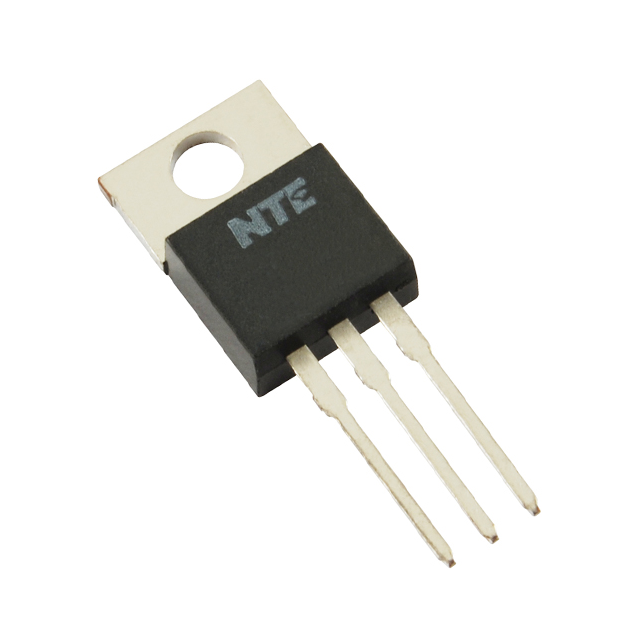

TIP49 Real Image
Same model may have multiple batches, images only for reference.

TIP49

Part No TIP49
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 350V 1A TO-220
Datasheet
TIP49 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Active
Transistor Polarity NPN
Maximum Current Collector 1A
VCEO Maximum Collector-Emitter Breakdown Voltage 350V
Max Vce (sat) 1V @ 200mA, 1A
Collector Cut-off Current(Max) 1mA
Typical Gain (hFE) (Min) 30 @ 300mA, 10V
Maximum Power Dissipation 2W
Frequency - Transition 10MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-220-3
Win Source Part Number 054116-TIP49
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,200
Ultra Librarian 3D Model Ultra Librarian TIP49 CAD Model

Description

The TIP49 is a NPN transistor with a maximum collector-emitter breakdown voltage of 350V.

  • Maximum collector-emitter breakdown voltage: 350V
  • Maximum current collector: 1A
  • Typical gain (hFE): 30 @ 300mA and 10V
  • Maximum power dissipation: 2W
  • Frequency-transition: 10MHz
  • Collector cut-off current (Max): 1mA
  • Operating temperature range: 150°C (TJ)
