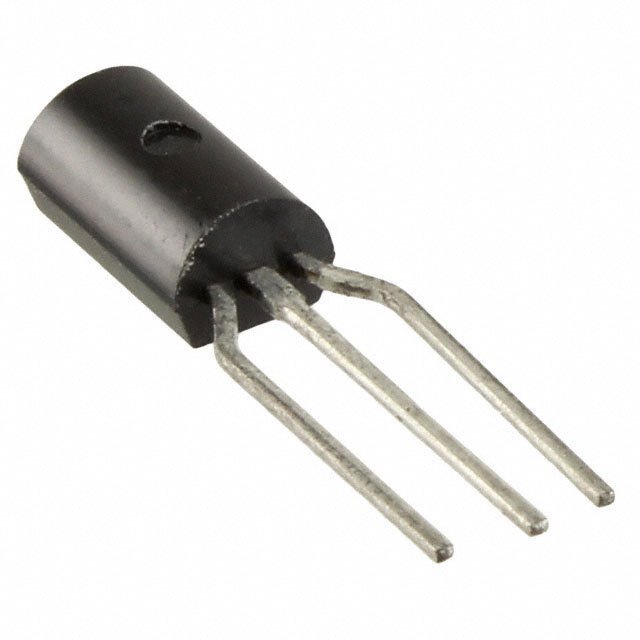

Same model may have multiple batches, images only for reference.
TN3019A Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

TN3019A

Part No TN3019A
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 1A TO-226 / Trans GP BJT NPN 80V 1A 3-Pin TO-226 Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 1A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 500mV @ 50mA, 500mA
Current - Collector Cutoff (Maximum) 10nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 100 @ 150mA, 10V
Power - Max 1W
Frequency - Transition 100MHz
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 Long Body
Manufacturer Package TO-226
Win Source Part Number 797691-TN3019A
Popularity Medium
Supply and Demand Status Balance
Family Name TN3019A
Introduction Date November 03, 1997
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TN3019A CAD Model

Description

The TN3019A is a Fairchild/ON Semiconductor transistor type NPN electronic component.

  • Supply and Demand Status: balanced
  • Power Max: 1W
  • Frequency Transition: 100MHz
  • Obsolete (EOL): Yes
