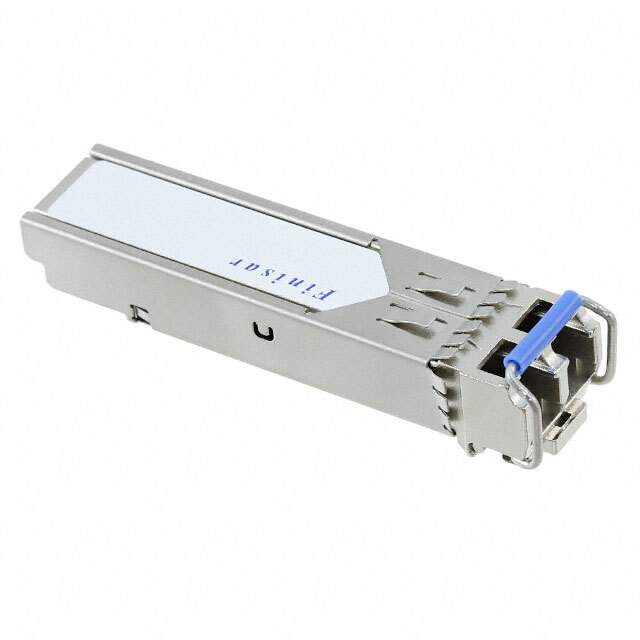

The FTLF1321P1BTL is a high-performance, cost-effective Small Form Factor Pluggable (SFP) transceiver from Finisar Corporation. It is designed for use in 1.25 Gb/s Gigabit Ethernet and 1x Fibre Channel applications. This transceiver module offers a reliable solution for data communication over single-mode fiber (SMF) cables, making it suitable for a wide range of networking applications.

Applications

• Gigabit Ethernet
• Fibre Channel
• Switch to Switch Interface
• High-speed I/O for file servers
• Data Centers

Features

• SFP package with LC connector
• 1310 nm Distributed Feedback (DFB) laser
• Up to 1.25 Gbps bi-directional data links
• Hot-pluggable capability
• Single 3.3V power supply
• Digital Diagnostic Monitoring (DDM) via I2C interface
• Up to 10 km transmission distance on SMF
• RoHS compliant

Benefits

• Provides high-speed data transmission over single-mode fiber, improving network performance and reliability.
• Hot-pluggable design allows for easy installation and replacement without network downtime.
• Digital Diagnostic Monitoring (DDM) provides real-time information on transceiver performance, simplifying troubleshooting and maintenance.
• Compact SFP form factor maximizes port density in networking equipment.
• Long transmission distance supports a wide range of network topologies.

Additional Details

The FTLF1321P1BTL transceiver operates at a wavelength of 1310 nm and is designed for use with single-mode fiber. It supports a transmission distance of up to 10 kilometers. The module incorporates a DFB laser and a PIN photodiode receiver. The DDM function allows users to monitor parameters like optical output power, optical input power, temperature, supply voltage, and laser bias current. The operating temperature range is typically 0°C to 70°C. This transceiver is compliant with SFP Multi-Source Agreement (MSA) standards, ensuring interoperability with other SFP-compatible devices.
