Same model may have multiple batches, images only for reference.

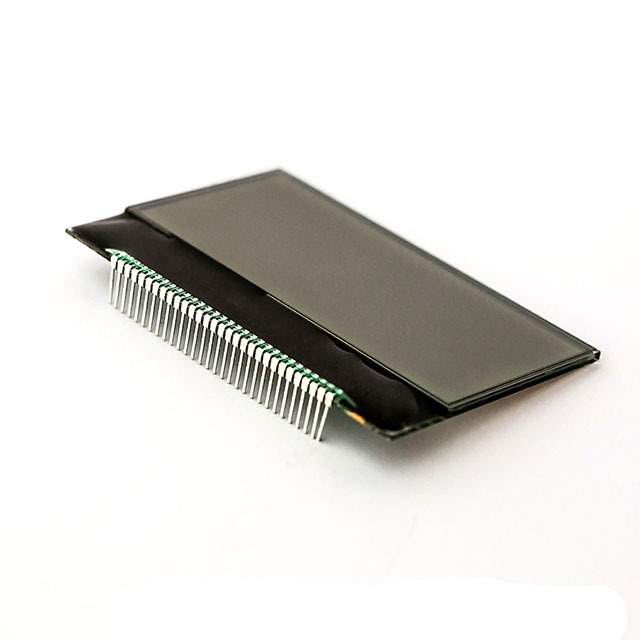

G126ADGFGN02WRC0XAL Real Image
Same model may have multiple batches, images only for reference.

G126ADGFGN02WRC0XAL

Part No G126ADGFGN02WRC0XAL
Manufacturer Focus LCDs
Catalog Display Modules - LCD, OLED, Graphic
Description 128X64 FSTN GRAY GRAPHIC LCD / Graphic LCD Display Module Reflective FSTN - Film Super-Twisted Nematic Parallel, 8-Bit, SPI 128 x 64
Datasheet
G126ADGFGN02WRC0XAL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LCD, OLED, Graphic
Mfr Focus LCDs
Package Box
Display Type FSTN - Film Super-Twisted Nematic
Display Mode Reflective
Viewing Area 50.00mm W x 25.00mm H
Backlight Without Backlight
Dot Pixels 128 x 64
Interface Parallel, 8-Bit, SPI
Controller Type ST7565R
Background Color Gray
Dot Size 0.33mm W x 0.33mm H
Dot Pitch 0.36mm W x 0.36mm H
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.20.0020
Other Names 2632-G126ADGFGN02WRC0XAL
Standard Package 1
Win Source Part Number 1170012-G126ADGFGN02WRC0XAL
Ultra Librarian 3D Model Ultra Librarian G126ADGFGN02WRC0XAL CAD Model

Description

This electronic component is a display module that belongs to the category Optoelectronics.

  • Interface: Parallel, 8-Bit, SPI
  • Display Type: FSTN - Film Super-Twisted Nematic
  • Controller Type: ST7565R
  • Display Mode: Reflective
  • Viewing Area: 50.00mm W x 25.00mm H
  • Backlight: No
  • Touchscreen: No
  • Dot Size: 0.33mm W x 0.33mm H
  • Background Color: Gray
  • Screen Size: -
  • Dot Pixels: 128 x 64
  • Dot Pitch: 0.36mm W x 0.36mm H
  • Operating Temperature: -55°C ~ 150°C
  • Manufacturer: Focus LCDs
