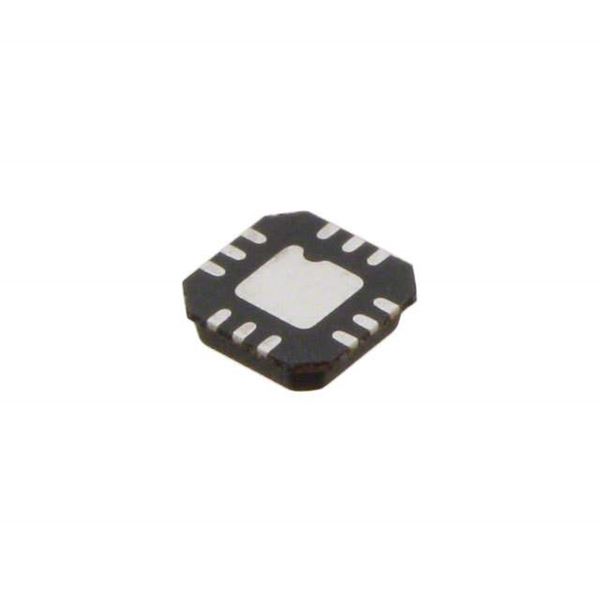

MC13820FCR2 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MC13820FCR2

Part No MC13820FCR2
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC W/NOISE AMPLIFIER BASE 12-QFN
Datasheet
MC13820FCR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 800MHz to 2.5GHz
P1dB -10dBm (0.1mW)
Gain 18dB
Noise Figure 1.25dB
RF Type Cellular, ISM, PCS, GPS
Supply Voltage - Operating 2.7 V to 3 V
Operating Supply Current 2.8mA
Test Frequency 1.575GHz
Case / Package 12-QFN (3x3)
Win Source Part Number 118204-MC13820FCR2
Ultra Librarian 3D Model Ultra Librarian MC13820FCR2 CAD Model

Description

The NXP electronic component with Id 229084 is a gain block amplifier with a gain of 18dB and a noise figure of 1.25dB.

  • Gain: 18dB
  • Noise Figure: 1.25dB
  • Frequency Range: 800MHz to 2.5GHz
  • P1dB: -10dBm (0.1mW)
  • Status: Obsolete
  • Supply Voltage: 2.7V to 3V
  • Operating Supply Current: 2.8mA
  • Applications: Cellular, ISM, PCS, and GPS
