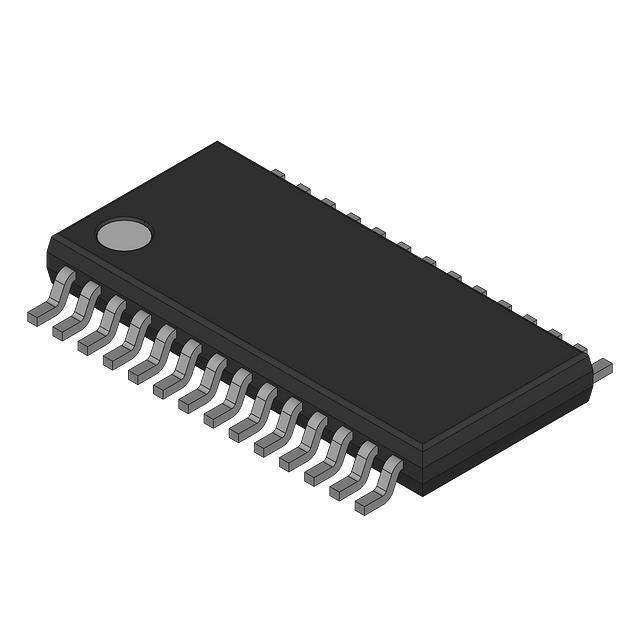

MC9S08SH16MTL Real Image
Same model may have multiple batches, images only for reference.

MC9S08SH16MTL

Part No MC9S08SH16MTL
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 28TSSOP
Datasheet
MC9S08SH16MTL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 40MHz
Number of I/O 23
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Data RAM Size 1K x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 16x10b
Temperature Range - Operating -40°C to 125°C (TA)
Case / Package 28-TSSOP
Win Source Part Number 088326-MC9S08SH16MTL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC9S08SH16MTL CAD Model

Description

The MC9S08SH16MTL is an 8-bit microcontroller from NXP.

  • Core Processor: S08
  • Program Memory Size: 16KB
  • Memory Type: FLASH
  • I/O Pins: 23
  • Data RAM Size: 1K x 8
  • Data Converters: 16x10b A/D
  • Speed: 40MHz
  • Supply Voltage: 2.7V to 5.5V
  • Package: 28-TSSOP
