The NXP TJA1102HN/0Z is a high-performance automotive Ethernet Physical Layer transceiver compliant with the IEEE 100BASE-T1 standard. It is designed to meet the rigorous demands of the automotive industry, delivering fast and reliable data communication for in-vehicle networks. This advanced transceiver enables automotive applications to leverage the speed and robustness of Ethernet, facilitating the integration of features such as advanced driver assistance systems (ADAS), infotainment, telematics, and in-vehicle networking.

Key Features:

• Compliance with IEEE 100BASE-T1: Supports high-speed data transmission over a single twisted pair cable, reducing wiring complexity and weight in vehicles.
• Integrated PHYceiver™ technology: Ensures robust operation in the harsh automotive environment with features like cable diagnostics, link quality monitoring, and failure detection.
• Low power mode: Includes a low-power standby mode with wake-up capabilities, essential for power management in automotive applications.

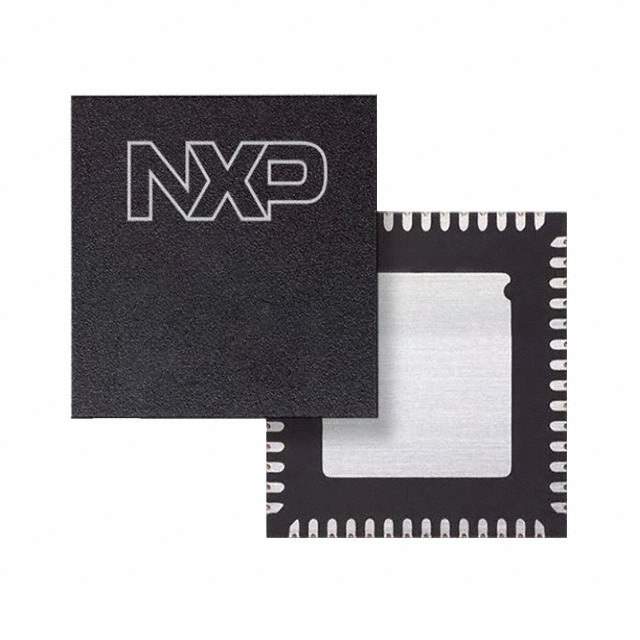

• Small footprint: The compact HVQFN package saves space on the PCB, which is critical in automotive design where space is at a premium.
• EMC and ESD protection: Built-in electromagnetic compatibility and electrostatic discharge protection features safeguard the transceiver against the electrical stresses encountered in automotive applications.

Applications:

The TJA1102HN/0Z is ideal for a wide range of automotive applications, including but not limited to:

• Advanced Driver Assistance Systems (ADAS)
• Infotainment and telematics systems
• On-board diagnostics and vehicle-to-everything (V2X) communication
• Rearview camera and surround-view systems

With its robust performance and advanced features, the NXP TJA1102HN/0Z Ethernet PHY Transceiver is a cornerstone for the development of innovative and high-performance automotive networks, contributing to safer and more connected vehicles.
