Same model may have multiple batches, images only for reference.

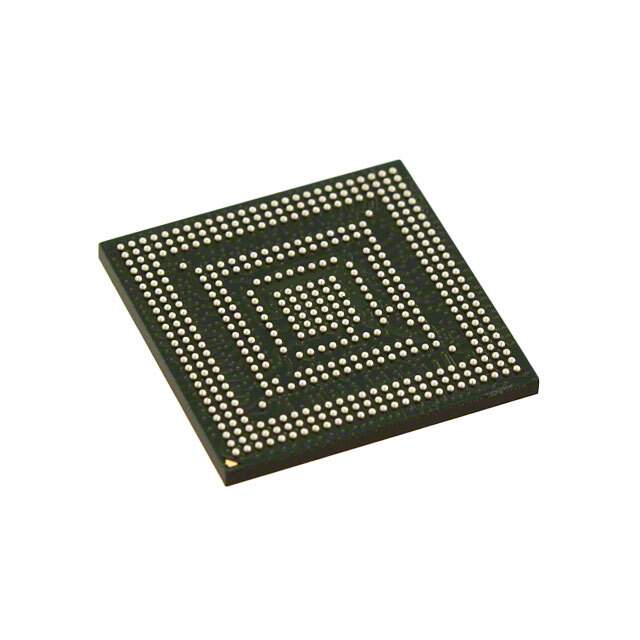

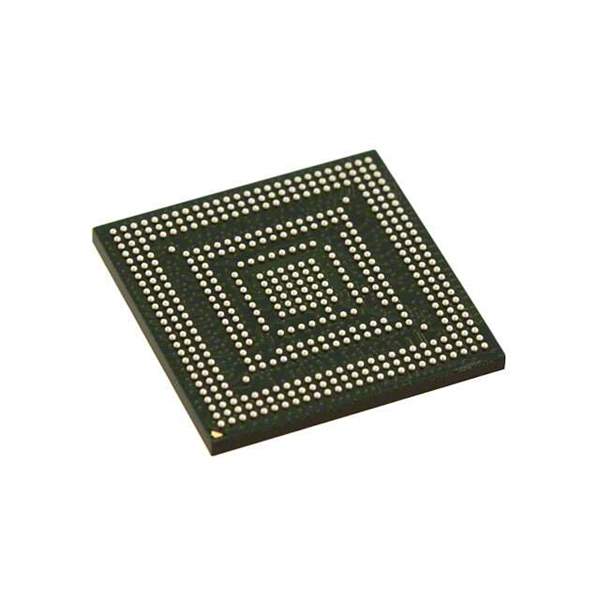

MCIMX31DVKN5D Real Image
Same model may have multiple batches, images only for reference.

MCIMX31DVKN5D

Part No MCIMX31DVKN5D
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX31 532MHZ 457MAPBGA
Datasheet
MCIMX31DVKN5D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor ARM1136JF-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 532MHz
Co-Processors/DSP Multimedia; GPU, IPU, MPEG-4, VFP
RAM Controllers DDR
Graphics Acceleration Yes
Display & Interface Controllers Keyboard, Keypad, LCD
USB USB 2.0 (3)
Voltage - I/O 1.8V, 2.0V, 2.5V, 2.7V, 3.0V
Temperature Range - Operating -20°C to 70°C (TA)
Security Features Random Number Generator, RTIC, Secure Fusebox, Secure JTAG, Secure Memory
Additional Interfaces 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, UART
Win Source Part Number 023014-MCIMX31DVKN5D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MCIMX31DVKN5D CAD Model

Description

The NXP MCIMX31DVKN5D is an ARM1136JF-S 32-bit microprocessor that operates @ a frequency of 532MHz.

  • Core Processor: ARM1136JF-S
  • Bus Width: 32-bit
  • Frequency: 532MHz
  • Voltage Range: 1.8V to 3.0V
  • Temperature Range: -20°C to 70°C
  • RAM Controller: DDR
  • Multimedia Co-processors: GPU, IPU, MPEG-4, and VFP
  • Display and Interface Controllers: Keyboard, Keypad, and LCD
  • USB: USB 2.0 (3)
  • Additional Interfaces: 1-Wire, AC97, ATA, FIR, I2C, I2S, MMC/SD/SDIO, MSHC, PCMCIA, SDHC, SIM, SPI, SSI, and UART
  • Package: Tray
