The NXP 139869-MCIMX6D6AVT10ACR is a high-performance microcontroller that is designed for a wide range of applications.

• Core Processor: ARM Cortex-A9
• Number of Cores: 2 cores
• Bus Width: 32-bit
• RAM Controllers: LPDDR2, LVDDR3, DDR3
• Multimedia: Yes
• Co-processors/DSP: NEON SIMD
• Graphics Acceleration: Yes
• Display & Interface Controllers: Keypad and LCD
• Ethernet: 10/100/1000 Mbps
• SATA: SATA 3Gbps
• USB 2.0: Yes
• Voltage - I/O: 1.8V, 2.5V, 2.8V, 3.3V
• Security Features: ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
• Additional Interfaces: CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART
• Operating Temperature Range: -40°C to 125°C (TJ)

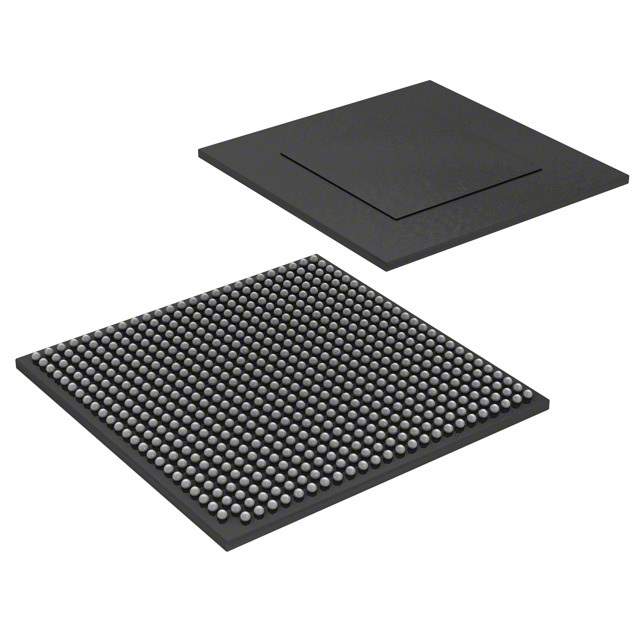

• Package: 624-FCBGA (21x21)
