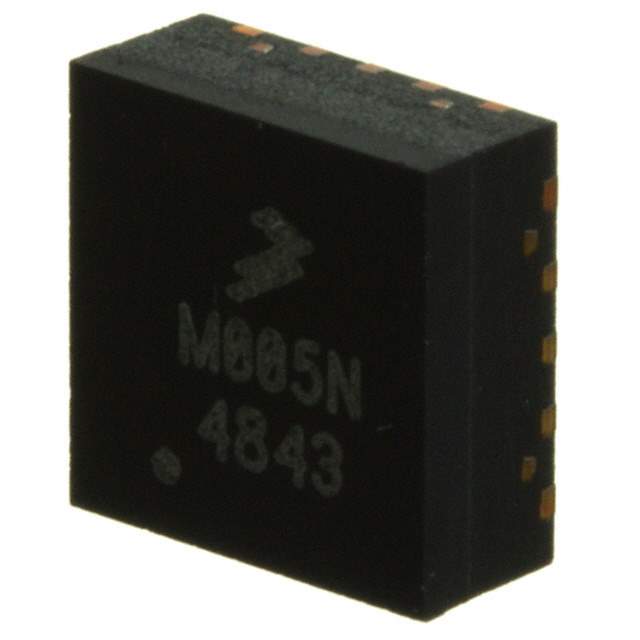

MMG3005NT1 Real Image
Same model may have multiple batches, images only for reference.

MMG3005NT1

Part No MMG3005NT1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC AMP RF GP 2200MHZ 5V 16-PQFN
Datasheet
MMG3005NT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Active
Frequency 800MHz to 2.2GHz
P1dB 30dBm (1W)
Gain 15dB
Noise Figure 5dB
RF Type Cellular, PCS, PHS, WLL
Supply Voltage - Operating 5V
Operating Supply Current 480mA
Test Frequency 2.14GHz
Case / Package 16-PWR QFN (5x5)
Win Source Part Number 125030-MMG3005NT1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MMG3005NT1 CAD Model

Description

The NXP MMG3005NT1 is an active electronic component that belongs to the RF/IF and RFID category.

  • Win Source Part Number: 125030
  • Package: 16-PWR QFN (5x5)
  • Test frequency: 2.14GHz
  • Frequency range: 800MHz to 2.2GHz
  • Gain: 15dB
  • Noise figure: 5dB
  • P1dB: 30dBm (1W)
  • RF type: Cellular, PCS, PHS, and WLL
  • Operating supply voltage: 5V
  • Operating supply current: 480mA
