Same model may have multiple batches, images only for reference.

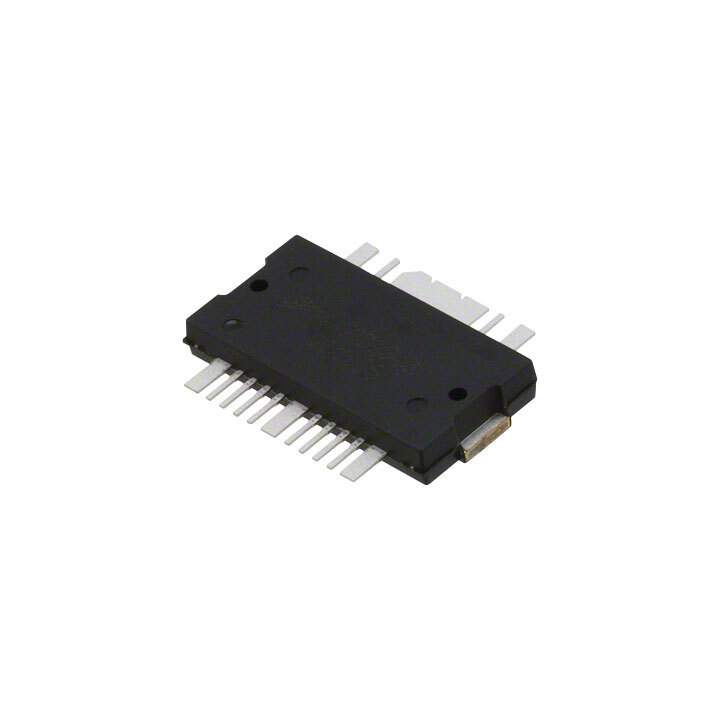

MW7IC2725NR1 Real Image
Same model may have multiple batches, images only for reference.

MW7IC2725NR1

Part No MW7IC2725NR1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC PWR AMP RF 2700MHZ TO-270-16
Datasheet
MW7IC2725NR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Active
Frequency 2.7GHz
P1dB 44dBm (25W)
Gain 28.5dB
RF Type WiMax
Supply Voltage - Operating 32V
Operating Supply Current 275mA
Test Frequency 2.7GHz
Case / Package TO-270 WBL-16
Win Source Part Number 059700-MW7IC2725NR1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MW7IC2725NR1 CAD Model

Description

The NXP MW7IC2725NR1 is a WiMax RF/IF and RFID integrated circuit with a manufacturer part number of 059700.

  • Package: reel - TR
  • Test Frequency: 2.7GHz
  • Frequency: 2.7GHz
  • Gain: 28.5dB
  • P1dB: 44dBm (25W)
  • Noise Figure: no noise figure specified
  • Supply Voltage: operates @ a supply voltage of 32V
  • Operating Supply Current: 275mA
  • Package: TO-270 WBL-16
  • Popularity Level: medium
  • Supply and Demand Status: limited
