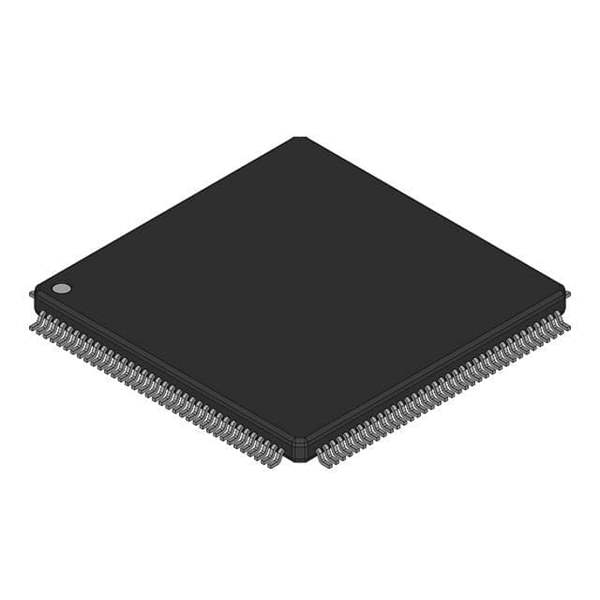

SPC5633MF1MLQ40 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

SPC5633MF1MLQ40

Part No SPC5633MF1MLQ40
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Freescale Semiconductor
Series MPC56xx Qorivva
Core Processor e200z3
Core Size 32-Bit Single-Core
Speed 40MHz
Connectivity CANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART
Peripherals DMA, POR, PWM, WDT
Number of I/O 80
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Supply Voltage - Operating 4.5V ~ 5.25V
Data Converters A/D 32x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Other Names NXPFRESPC5633MF1MLQ40,2156-SPC5633MF1MLQ40
Standard Package 1
ECCN 3A991A2
Win Source Part Number 1264704-SPC5633MF1MLQ40
Ultra Librarian 3D Model Ultra Librarian SPC5633MF1MLQ40 CAD Model

Description

The SPC5633MF1MLQ40 from Freescale Semiconductor is a high-performance microcontroller that belongs to the MPC56xx Qorivva series.

  • Core Size: 32-bit single-core
  • Operating Speed: 40MHz
  • Package: SMD (SMT)
  • Connectivity: CANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART
  • I/Os: 80
  • Program Memory Size: 1MB (1M x 8)
  • Program Memory Type: FLASH
  • RAM Size: 64K x 8
  • Oscillator Type: Internal
