Same model may have multiple batches, images only for reference.

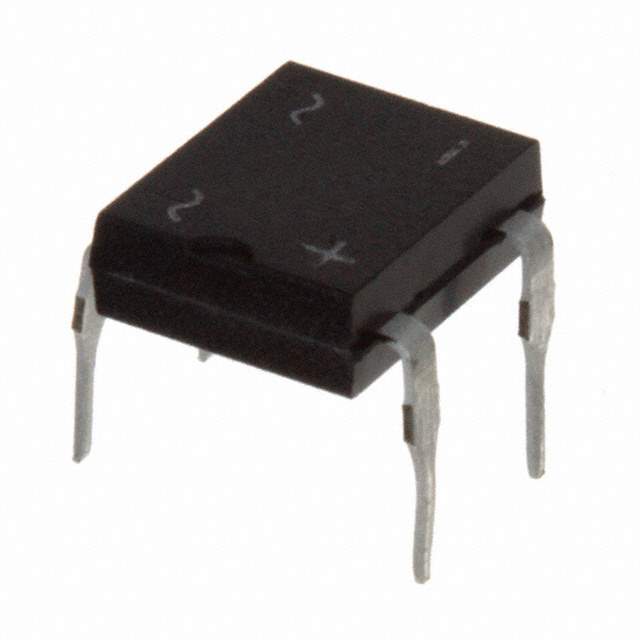

DB107G Real Image
Same model may have multiple batches, images only for reference.

DB107G

Part No DB107G
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 1000V 1A DB / Diode Rectifier Bridge Single 1KV 1A 4-Pin Case DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-EDIP (0.321", 8.15mm)
Manufacturer Package DB
Win Source Part Number 772505-DB107G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Family Name DB107G
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian DB107G CAD Model

Description

The DB107G is a single-phase diode that can handle an average rectified current (Io) of 1A.

  • Reverse Leakage Current (Ir): 10μA @ 1000V
  • Peak Reverse Voltage: 1000V
  • Voltage Forward (Vf): 1.1V @ 1A
  • Mounting: Through Hole
  • Package: 4-EDIP (0.321", 8.15mm)
  • Operating Temperature: -55°C ~ 150°C (TJ)
