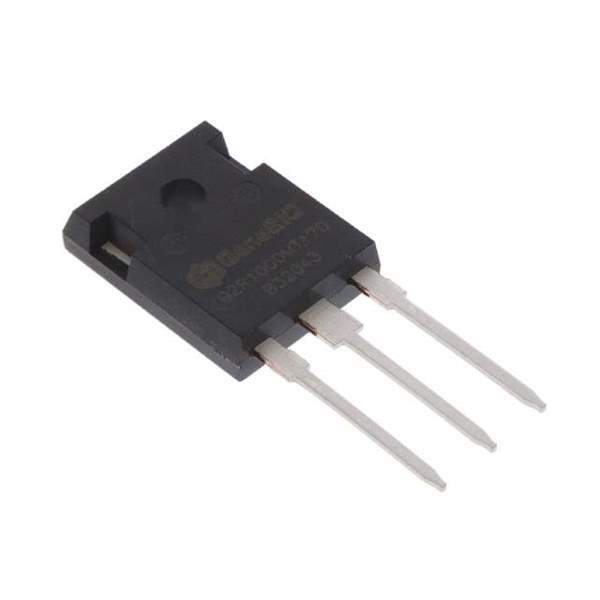

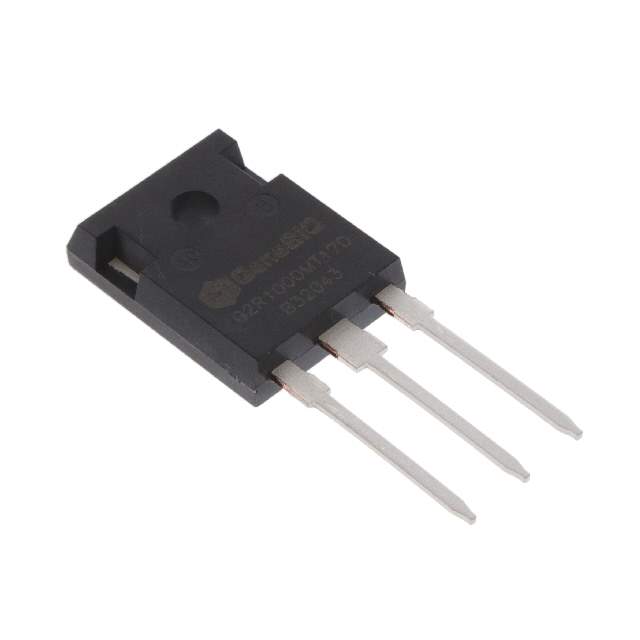

Same model may have multiple batches, images only for reference.

G3R45MT17D

Name: G3R45MT17D
Brand: GeneSiC Semiconductor
SKU: 1350562
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	G3R45MT17D
Manufacturer	GeneSiC Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	SIC MOSFET N-CH 61A TO247-3 / N-Channel 1700 V 61A (Tc) 438W (Tc) Through Hole TO-247-3
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	GeneSiC Semiconductor
Series	G3R™
Package	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	61A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	58mOhm @ 40A, 15V
Vgs(th) (Max) @ Id	2.7V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	182 nC @ 15 V
Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	4523 pF @ 1000 V
Power Dissipation (Max)	438W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
Base Product Number	G3R45
Standard Package	30
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1350562-G3R45MT17D
Ultra Librarian 3D Model	Ultra Librarian G3R45MT17D CAD Model

Alternative Products

Description

The G3R™ series SiCFET (Silicon Carbide) N-Channel FET is a powerful electronic component that can handle a maximum power dissipation of 438W (Tc) and has a drain to source voltage (Vdss) of 1700V.

Manufacturer: Unknown
Product Name: G3R45
Maximum Power Dissipation: 438W (Tc)
Drain to Source Voltage (Vdss): 1700V
Mounting Type: Through Hole
Package/Case: TO-247-3
Continuous Drain Current (Id): 61A (Tc)
Rds On (Max): 58mOhm @ 40A, 15V
Input Capacitance (Ciss): 4523 pF @ 1000 V
Gate Charge (Qg): 182 nC @ 15 V
