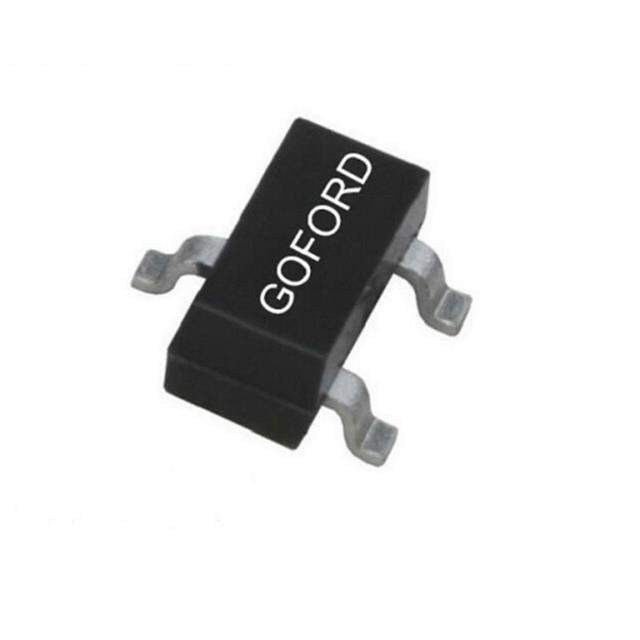

Name: 2302
Brand: Goford Semiconductor
SKU: 850929
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	2302
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 20V 4.3A SOT-23
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	27mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	300 pF @ 10 V
FET Feature	Standard
Power Dissipation (Max)	1W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
Standard Package	3,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	850929-2302
Package	Cut Tape (CT)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate Charge (Qg) (Max) @ Vgs	4 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	356 pF @ 10 V
Power Dissipation (Max)	1W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Ultra Librarian 3D Model	Ultra Librarian 2302 CAD Model

Alternative Products

Description

The Goford Semiconductor X3S026000B91H-NZ is an N-Channel MOSFET transistor.

Vdss: 20V
Id: 4.3A @ 25°C
Rds On: 27mOhm @ Vgs of 4.5V
Package: TO-236-3, SC-59, SOT-23-3
Mounting: Surface mount
Qg: 10nC
Vgs: ±10V
Operating Temperature: -55°C to 150°C
Status: Active
