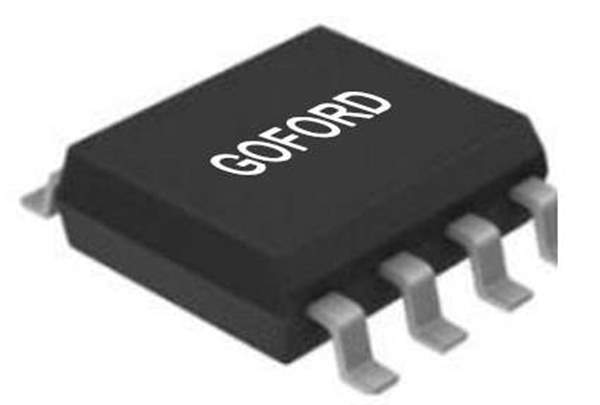

Same model may have multiple batches, images only for reference.

G10N03S

Name: G10N03S
Brand: Goford Semiconductor
SKU: 1376828
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	G10N03S
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	N30V,RD(MAX)<12M@10V,RD(MAX)<16M
Datasheet	G10N03S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Series	-
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	839 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.5W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1376828-G10N03S
Ultra Librarian 3D Model	Ultra Librarian G10N03S CAD Model

Alternative Products

Description

The G10N03S is an N-Channel MOSFET transistor from Goford Semiconductor.

Type: N-Channel MOSFET
Category: Discrete Semiconductor Products
Temperature Range: -55°C to 150°C
Package: 8-SOIC
Packaging: Tape & Reel
Drain-to-Source Voltage (Vdss): 30V
Continuous Drain Current (Id): 10A
Rds On: 12mOhm @ 6A and 10V
Gate Charge (Qg): 17nC @ 4.5V
Maximum Gate-Source Voltage (Vgs): ±20V
Applications: Power Electronics
