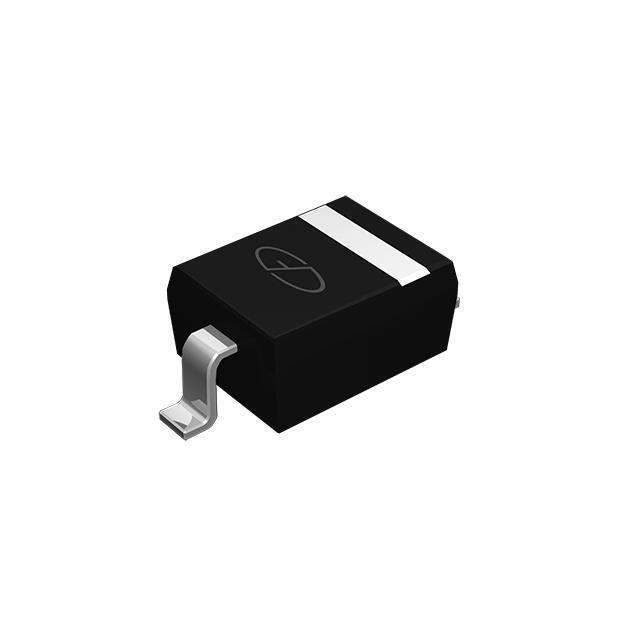

GSESLC15VD323S-2B Real Image
Same model may have multiple batches, images only for reference.

GSESLC15VD323S-2B

Part No GSESLC15VD323S-2B
Manufacturer GOOD-ARK Electronics
Catalog TVS - Diodes
Description TVS, ESD, SINGLE, BI-DIR, LOW CA
Datasheet
GSESLC15VD323S-2B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr GOOD-ARK Electronics
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 40V
Current - Peak Pulse (10/1000µs) 10A
Power - Peak Pulse 350W
Power Line Protection No
Applications Ethernet, USB
Capacitance @ Frequency 1pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 964699-GSESLC15VD323S-2B
Ultra Librarian 3D Model Ultra Librarian GSESLC15VD323S-2B CAD Model

Description

The GSESLC15VD323S-2B is a bidirectional Zener diode designed for Ethernet and USB applications.

  • Reverse Standoff Voltage: 15V
  • Breakdown Voltage: 16.7V
  • Clamping Voltage: 40V @ peak pulse power of 350W
  • Capacitance: 1pF @ 1MHz
  • Peak Pulse Current: 10A @ 10/1000µs
  • Mounting Type: The GSESLC15VD323S-2B is a surface mount component
  • Package: SC-76, SOD-323
  • Operating Temperature Range: -55°C to 150°C
  • Application: The diode is widely used in circuit protection applications for transient voltage suppression.
