Same model may have multiple batches, images only for reference.

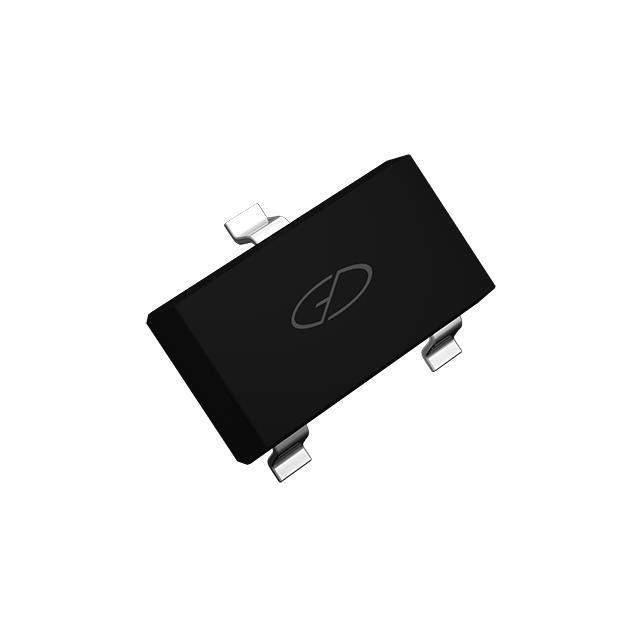

SSF3341 Real Image
Same model may have multiple batches, images only for reference.

SSF3341

Part No SSF3341
Manufacturer GOOD-ARK Electronics
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET, P-CH, SINGLE, -4.2A, -30
Datasheet
SSF3341 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr GOOD-ARK Electronics
Package Tape & Reel
Product Status Active
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 4.2A
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Rds On (Max) @ Id, Vgs 50mOhm @ 4.2A, 10V
Vgs(th) (Max) @ Id 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 18 nC @ 10 V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 712 pF @ 15 V
Power Dissipation (Max) 1.4W
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Surface Mount
Supplier Device Package SOT-23
Package / Case TO-236-3, SC-59, SOT-23-3
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0080
Win Source Part Number 676571-SSF3341
Ultra Librarian 3D Model Ultra Librarian SSF3341 CAD Model

Description

The 676571-SSF3341 is a P-Channel MOSFET designed for use in discrete semiconductor products such as FETs and MOSFETs.

  • Channel Type: P-Channel
  • Drain to Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id): 4.2A @ 25°C
  • On-Resistance (Rds On): 50mOhm @ 4.2A and 10V gate-source voltage (Vgs)
  • Gate-Source Threshold Voltage (Vgs(th)): 1.3V @ 250µA
  • Power Dissipation: 1.4W
  • Mounting Type: Surface Mountable
  • Package: TO-236-3, SC-59, SOT-23-3
  • Gate Charge (Qg): 18nC @ 10V gate-source voltage (Vgs)
  • Input Capacitance (Ciss): 712pF @ 15V drain-source voltage (Vds)
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: GOOD-ARK Electronics
  • Status: Active
