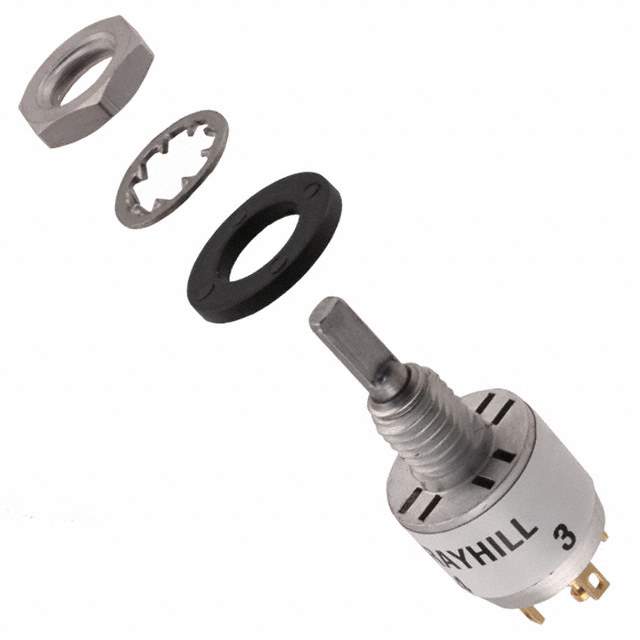

50D90-01-1-AJN Real Image
Same model may have multiple batches, images only for reference.

50D90-01-1-AJN

Part No 50D90-01-1-AJN
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 2-4POS 150MA 115V / Rotary Switch 2 ~ 4 Position SP4T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr Grayhill Inc.
Series 50
Package Bulk
Number of Positions 2 ~ 4
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP4T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 150mA (AC), 200mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 90°
Contact Finish Gold
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 18.77mm
Panel Cutout Dimensions Circular - 6.45mm Dia
Base Product Number 50D90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names GH7351,2266-50D90-01-1-AJN,50D90011AJN,50D90-01-1-AJN-ND
Standard Package 1
Win Source Part Number 1055084-50D90-01-1-AJN
Ultra Librarian 3D Model Ultra Librarian 50D90-01-1-AJN CAD Model

Description

The 1055084-50D90-01-1-AJN is a SP4T rotary switch from Grayhill Inc.

  • Series: 50
  • Termination Style: solder lug
  • Voltage Rating: 115VAC and 28VDC
  • Actuator Type: flatted (3.17mm Dia)
  • Angle of Throw: 90°
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: Panel mountable
  • Panel Cutout Dimension: 6.45mm Dia
  • Current Rating: 150mA (AC), 200mA (DC)
  • Package: Bulk
