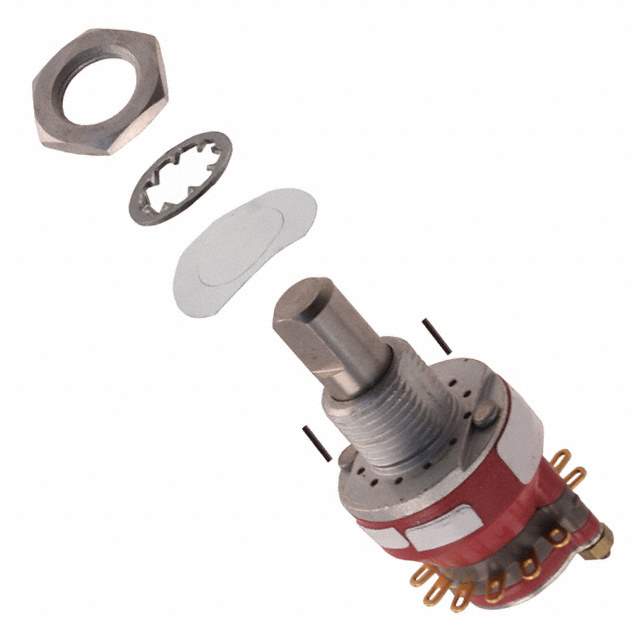

71BD30-01-2-AJN Real Image
Same model may have multiple batches, images only for reference.

71BD30-01-2-AJN

Part No 71BD30-01-2-AJN
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 2-6POS 250MA 115V  /  Rotary Switch 2 ~ 6 Position DP6T 250mA (AC/DC) 115 VAC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr Grayhill Inc.
Series 71
Package Bulk
Number of Positions 2 ~ 6
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DP6T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC/DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 30 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 9.53mm
Angle of Throw 30°
Contact Material Silver Alloy
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 19.33mm
Base Product Number 71BD30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names GH7102-NDR,2266-71BD30-01-2-AJN,GH7102,71BD30012AJN
Standard Package 1
Win Source Part Number 1004393-71BD30-01-2-AJN
Ultra Librarian 3D Model Ultra Librarian 71BD30-01-2-AJN CAD Model

Description

The Grayhill Inc. 1004393-71BD30-01-2-AJN rotary switch is a high-quality switch that is perfect for use in electronic devices.

  • Contact Timing: Non-Shorting (BBM)
  • Actuator Type: Flatted (6.35mm Dia)
  • Index Stop: Adjustable
  • Depth Behind Panel: 19.33mm
  • Circuit Per Deck: DP6T
  • Number of Positions: 2 to 6
  • Voltage Rating: 115 V AC and 30 V DC
  • Current Rating: 250mA (AC/DC)
  • Mounting Type: Panel Mount
  • Termination Style: Solder Lug
