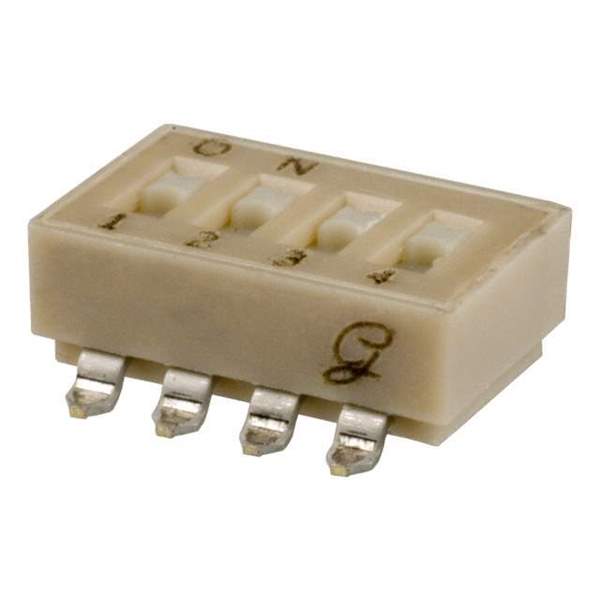

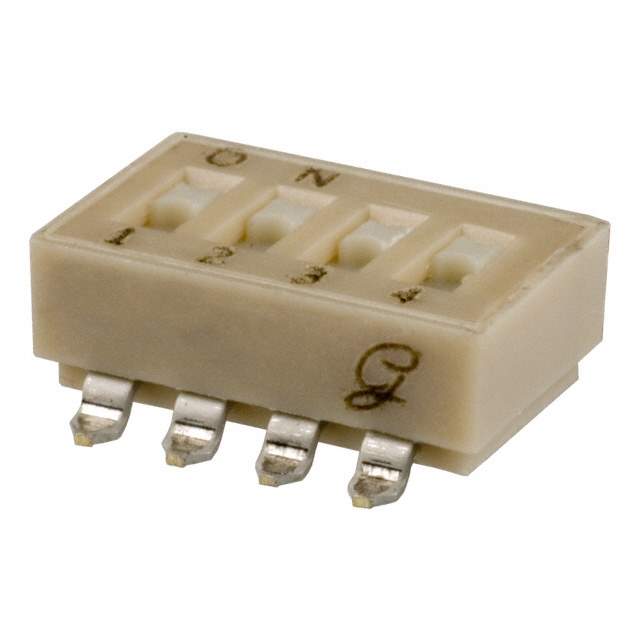

Same model may have multiple batches, images only for reference.

90HBW04PT

Name: 90HBW04PT
Brand: Grayhill Inc.
SKU: 551496
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	90HBW04PT
Manufacturer	Grayhill Inc.
Catalog	DIP Switches
Description	Surface Mount DIP Switches \| SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	Grayhill Inc.
Packaging	Tube
Circuit	SPST
Number of Positions	4
Current Rating (Amps)	25mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Material	Copper Alloy
Contact Finish	Gold
Height Above Board	0.190" (4.83mm)
Mounting Style	SMD
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	Tape Seal
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Thermoplastic
Length	0.470" (11.94mm)
Mechanical Life	2,000 Cycles
Electrical Life	2,000 Cycles
Manufacturer Pack Quantity	37
MSL Level	3 (168 Hours)
Win Source Part Number	1134184-90HBW04PT
Manufacturer Homepage	www.grayhill.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 90HBW04PT CAD Model

Alternative Products

Description

The Grayhill Inc. 90HBW04PT is a 4-position slide switch with a pitch of 0.100" (2.54mm), full. Bold the product name (e.g., BAV99S,135 → 90HBW04PT) and manufacturer (e.g., Nexperia USA Inc. → Grayhill Inc.).

Number of Positions: 4
Pitch: 0.100" (2.54mm), Full
Termination Style: Gull Wing
Mounting Style: SMD
Seal: Tape Seal
Contact Finish: Gold
Contact Material: Copper Alloy
Voltage Rating: 24VDC
Height Above Board: 0.190" (4.83mm)
Length: 0.470" (11.94mm)
Body Material: Thermoplastic
Circuit: SPST
Actuator Type: Slide (Standard)
Electrical Life: 2,000 Cycles
Mechanical Life: 2,000 Cycles
Actuator Level: Flush, Recessed
Washable: Yes
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 37
MSL Level: 3 (168 Hours)
Current Rating: 25mA
