The MBR0530W is a surface-mount Schottky Barrier Rectifier manufactured by Guangdong Kexin Industrial Co., Ltd. It's designed for low forward voltage drop and fast switching, making it ideal for efficient rectification in various electronic circuits.

Applications:

• DC-DC Converters: Used as a rectifier in low-voltage DC-DC converters for improved efficiency.
• Freewheeling Diode: Provides a path for inductive current during switching transitions.
• Reverse Polarity Protection: Prevents damage from reverse polarity connections.
• Solar Panel Junction Boxes: Used as a bypass diode to prevent hotspots and improve efficiency.
• LED Lighting: Employed in LED drivers for efficient rectification.

Features:

• Low Forward Voltage Drop: Reduces power loss and improves efficiency.
• Fast Switching Speed: Allows for high-frequency operation.
• Surface Mount Package: Enables automated assembly and compact design.
• High Surge Current Capability: Provides robustness against transient surges.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directives.

Benefits:

• High Efficiency: Low forward voltage drop minimizes power dissipation.
• Compact Design: Surface mount package allows for miniaturization.
• Reliable Operation: High surge current capability ensures robust performance.
• Reduced Heat Generation: Low forward voltage drop contributes to lower operating temperatures.
• Easy Integration: Surface mount package simplifies assembly.

Additional Details:

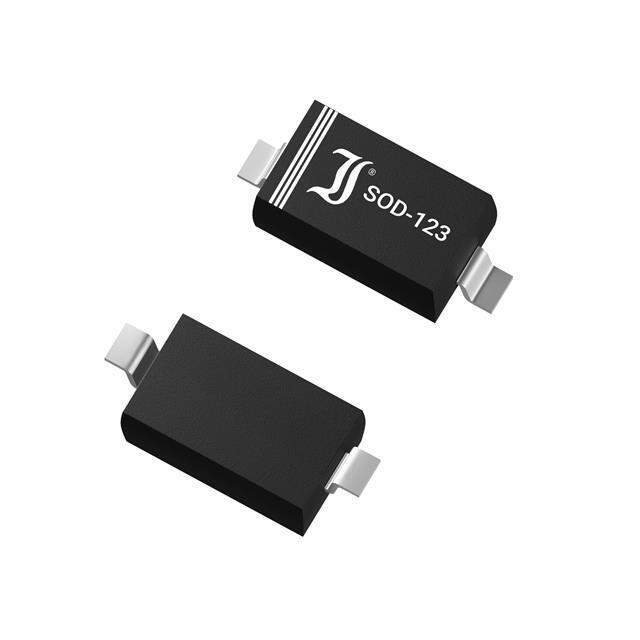

The MBR0530W typically comes in a SOD-123 package. Key electrical characteristics include repetitive peak reverse voltage (VRRM), average forward rectified current (IF(AV)), and forward voltage (VF) at a specific current and temperature. Proper thermal management is essential to prevent overheating, especially at higher current levels. Refer to the datasheet for detailed specifications, derating curves, and application recommendations.
