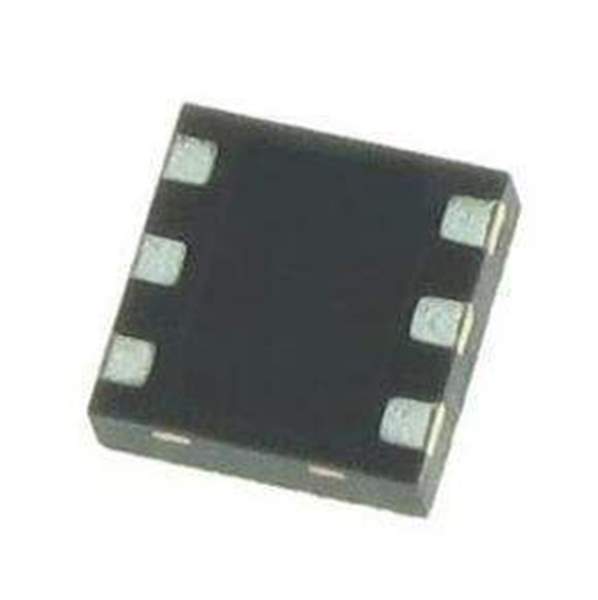

GRF3044 Guerrilla RF
Same model may have multiple batches, images only for reference.

GRF3044

Part No GRF3044
Manufacturer Guerrilla RF, Inc.
Catalog RF Amplifiers
Description RF Amplifier .1-11GHz GaAs Gain 16.6dB NF 1.8dB
Datasheet
GRF3044 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Guerrilla RF
Category RF Amplifier
Operating Frequency 100 MHz to 11 GHz
Operating Supply Voltage 7 V
Operating Supply Current 100 mA
Gain 16.6 dB
NF - Noise Figure 1.8 dB
Type Gain Block Amplifiers
Mounting Style SMD/SMT
Package / Case DFN-6
Technology GaAs
P1dB - Compression Point 19.8 dBm
OIP3 - Third Order Intercept 31.5 dBm
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Ultra Librarian 3D Model Ultra Librarian GRF3044 CAD Model

Description

The GRF3044 is a broadband gain block designed for applications up to 12 GHz. The resistively-biased device employs an external resistor in series with VDD to set a nominal IDDQ of 100 mA. The device is internally matched to 50 Ω at the input and output ports. The device can be operated down to low frequency via the selection of suitably large input/output capacitors and bias inductor.
