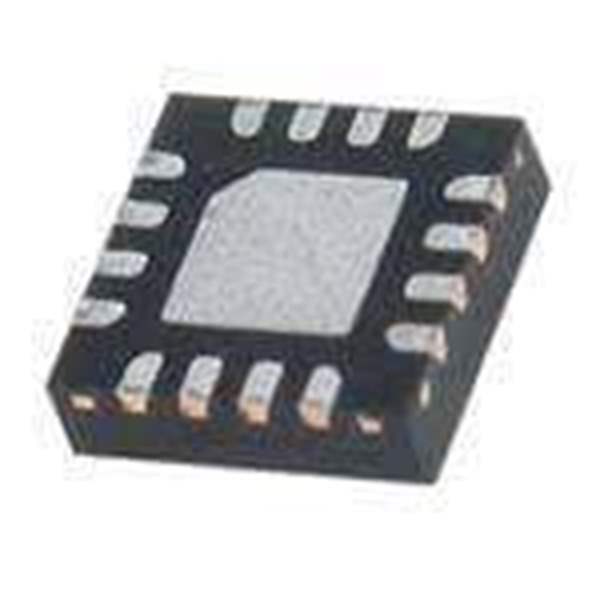

GRF5504 Guerrilla RF
Same model may have multiple batches, images only for reference.

GRF5504

Part No GRF5504
Manufacturer Guerrilla RF, Inc.
Catalog RF Amplifiers
Description RF Amplifier High Efficiency, 3.5Watt PA/Saturated PA, OP1dB >34.0 dBm; 0.4 - 0.5 GHz
Datasheet
GRF5504 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Guerrilla RF
Category RF Amplifier
Operating Frequency 400 MHz to 500 MHz
Operating Supply Voltage 3.5 V to 5 V
Operating Supply Current 120 mA
Gain 41 dB
Type Power Amplifiers
Mounting Style SMD/SMT
Package / Case QFN-16
Technology InGaP
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Ultra Librarian 3D Model Ultra Librarian GRF5504 CAD Model

Description

The GRF5504 is a high efficiency PA that delivers up to 3.5 watts at PSAT with VCC at 5 volts and a low ICCQ of 125 mA. PAE at PSAT is roughly 61%. The device can be tuned over a range of frequencies from 100 to 550 MHz with typical fractional bandwidths of 3 to 5%For frequencies in the 700-1000 MHz range, GRF5509 offers slightly higher output power and higher efficiency with the same package and pinout.
