Same model may have multiple batches, images only for reference.

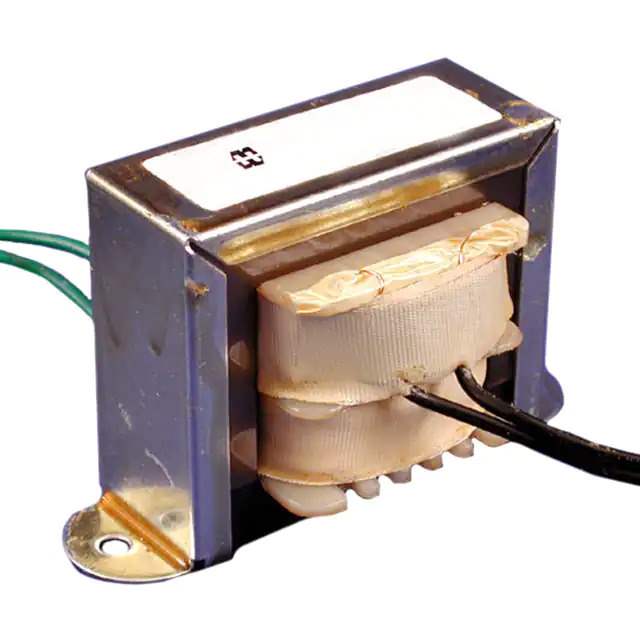

166M12 Real Image
Same model may have multiple batches, images only for reference.

166M12

Part No 166M12
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 37.8VA CHAS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Hammond Manufacturing
Series 166
Package Bulk
Product Status Active
Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) 12.6V
Current - Output (Max) 3A
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap Yes
Power - Max 37.8VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 93.73mm L x 54.10mm W
Height - Seated (Max) 58.67mm
Voltage - Isolation 2000Vrms
Weight 1.7 lbs (771.1 g)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 873672-166M12
Ultra Librarian 3D Model Ultra Librarian 166M12 CAD Model

Description

The 873672-166M12 is a power transformer from Hammond Manufacturing.

  • Series: 166
  • Core Type: Laminated Core
  • Termination: Wire Leads
  • Package: Bulk
  • Size: 93.73mm L x 54.10mm W
  • Height: 58.67mm Maximum Seated
  • Maximum Power: 37.8VA
  • Weight: 1.7 lbs (771.1 g)
  • Isolation Voltage: 2000Vrms
  • Primary Voltage: 115V
  • Maximum Output Current: 3A
  • Secondary Voltage: 12.6V @ Full Load
  • Primary Windings: Single
  • Secondary Windings: Single, Center Tap
  • Mounting Type: Chassis Mount
  • ECCN: EAR99
  • Status: Active
  • REACH: Unaffected
