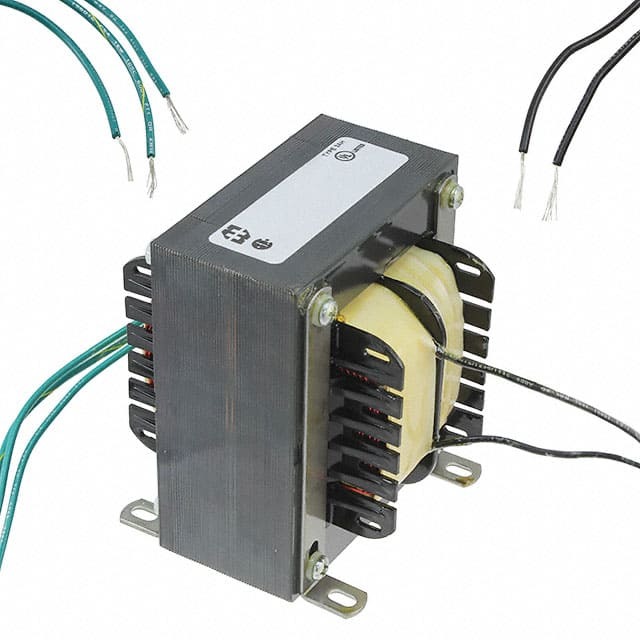

Same model may have multiple batches, images only for reference.
166M72
Same model may have multiple batches, images only for reference.

166M72

Part No 166M72
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 216VA CHAS MT
Datasheet
166M72 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Hammond Manufacturing
Series 166
Package Box
Product Status Active
Type Laminated Core
Voltage - Primary 117V
Voltage - Secondary (Full Load) 72V
Current - Output (Max) 3A
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap Yes
Power - Max 216VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 95.25mm L x 90.42mm W
Height - Seated (Max) 114.30mm
Voltage - Isolation 2000Vrms
Weight 11 lbs (5 kg)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 873673-166M72
Ultra Librarian 3D Model Ultra Librarian 166M72 CAD Model

Description

The 873673-166M72 is a high-quality power transformer from Hammond Manufacturing.

  • Series: 166
  • Core Type: Laminated Core
  • Termination: Wire Leads
  • Package: Box
  • Max Power: 216VA
  • Isolation Voltage: 2000Vrms
  • Primary Windings: Single
  • Secondary Windings: Single, Center Tap
  • Voltage Ratio: 117V to 72V
  • Mounting Type: Chassis Mount
