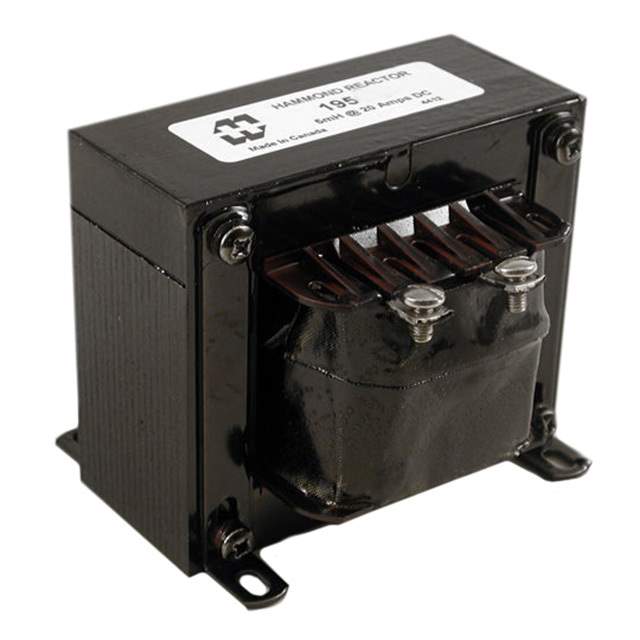

195G20 Real Image
Same model may have multiple batches, images only for reference.

195G20

Part No 195G20
Manufacturer Hammond Manufacturing
Catalog Fixed Inductors
Description FIXED IND 5MH 20A 25 MOHM CHASS / 5 mH Unshielded Inductor 20 A 25mOhm Nonstandard
Datasheet
195G20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Hammond Manufacturing
Series 195
Package Bulk
Type -
Material - Core -
Inductance 5 mH
Tolerance ±15%
Current Rating (Amps) 20 A
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 25mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -
Mounting Type Chassis Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 4.500" L x 4.750" W (114.30mm x 120.65mm)
Height - Seated (Max) 3.750" (95.25mm)
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1 pcs
Win Source Part Number 1382246-195G20
Ultra Librarian 3D Model Ultra Librarian 195G20 CAD Model

Description

The Hammond Manufacturing Fixed Inductor is a high-quality component designed for various applications.

  • Shielding: Unshielded
  • Package/Case: Nonstandard
  • Size/Dimension: 4.500" L x 4.750" W (114.30mm x 120.65mm)
  • Inductance: 5 mH
  • Current Rating: 20 A
  • DC Resistance (DCR): 25mOhm
  • Manufacturer: Hammond Manufacturing
