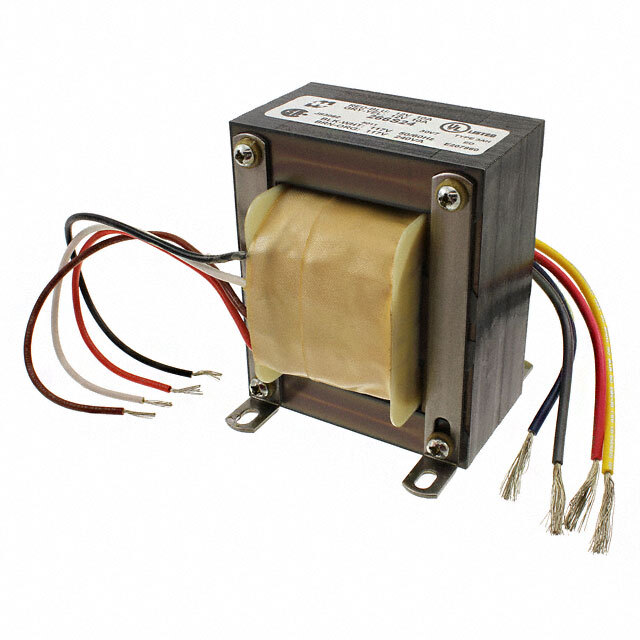

266L48

Part No 266L48
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 96VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 117V, 234V
Voltage - Secondary (Full Load) Parallel 24V, Series 48V
Current - Output (Max) Parallel 4A, Series 2A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 96VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 71.37mm L x 77.72mm W
Height - Seated (Max) 85.85mm
Voltage - Isolation 2000Vrms
Weight 4.5 lbs (2 kg)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545931-266L48
Ultra Librarian 3D Model Ultra Librarian 266L48 CAD Model
