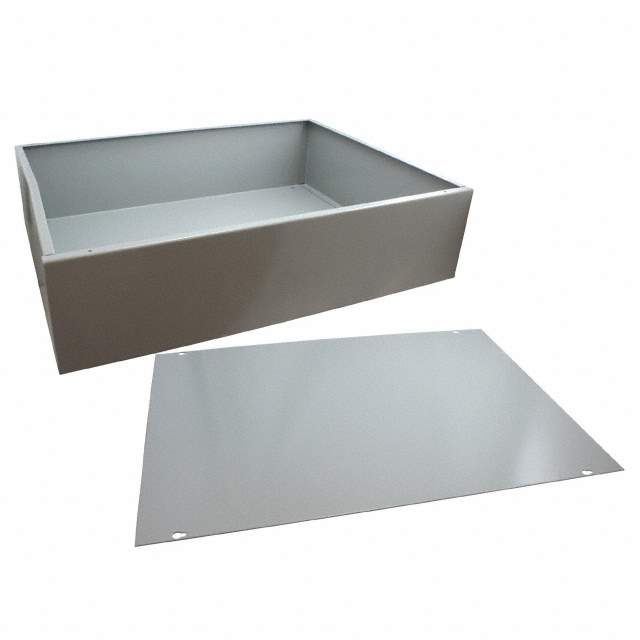

CS24186 Real Image
Same model may have multiple batches, images only for reference.

CS24186

Part No CS24186
Manufacturer Hammond Manufacturing
Catalog Boxes
Description BOX STEEL GRAY 24"L X 18"W / Gray Mild Steel Wall Mount Junction Box
Datasheet
CS24186 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Boxes, Enclosures, Racks
Manufacturer Hammond Manufacturing
Series CS
Container Type Box
Dimension 24.000" L x 18.000" W (609.60mm x 457.20mm)
Height 6.000" (152.40mm)
Area (L x W) 432" (2787cm)
Design Cover Included
Material Metal, Steel
Color Gray
Ratings IP20, NEMA 1
Weight 26 lbs (11.8kg)
Win Source Part Number 771786-CS24186
Popularity Medium
Supply and Demand Status Limited
Family Name CS
Introduction Date August 16, 2005
ECCN EAR99
Country of Origin Canada
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CS24186 CAD Model

Description

The Hammond Manufacturing CS series is a gray-colored enclosure made of metal and steel.

  • Color: Gray
  • Material: Metal, Steel
  • Cover: Included
  • Ratings: IP20, NEMA 1
  • Dimensions: 24.000" L x 18.000" W x 6.000" H
  • Thickness: Not Specified
  • Weight: 26 lbs
  • Container Type: Box
  • Area: 432"
  • Family: CS
  • Categories: Boxes, Enclosures, Racks
  • Popularity: Medium
  • EOL Date: 2025 (Estimated)
