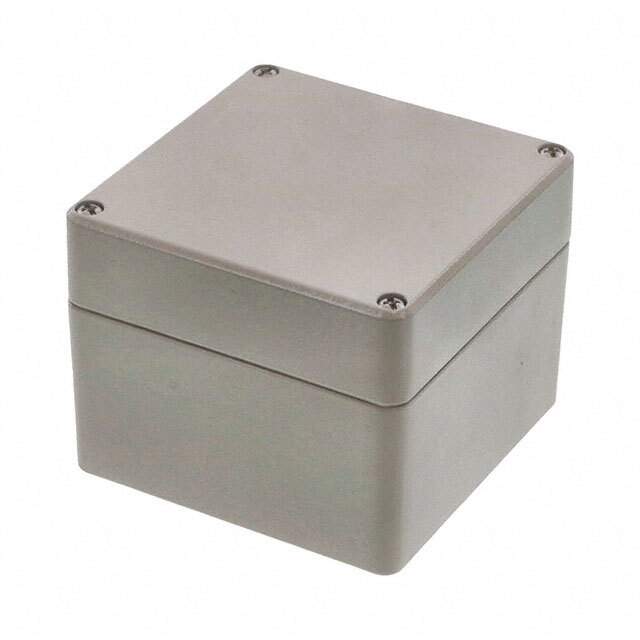

R100-100-000 Real Image
Same model may have multiple batches, images only for reference.

R100-100-000

Part No R100-100-000
Manufacturer Hammond Manufacturing
Catalog Boxes, Enclosures, Racks
Description BOX ALUM BEIGE 3.937"L X 3.937"W / Box Metal, Aluminum Beige Split Sides 3.937" L x 3.937" W (100.00mm x 100.00mm) X 3.150" (80.00mm)
Datasheet
R100-100-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Hammond Manufacturing
Series R100
Package Bulk
Container Type Box
Dimension 3.937" L x 3.937" W (100.00mm x 100.00mm)
Height 3.150" (80.00mm)
Area (L x W) 15.5in² (100cm²)
Design Split Sides
Material Metal, Aluminum
Color Beige
Features PCB Supports, Watertight
Ratings DIN 40050, IP66, NEMA 4X
Weight 1.3 lbs (589.7 g)
Base Product Number R100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7612.90.1090
Other Names HM5623,Q1437347,R100-100-000-ND
Standard Package 1
Win Source Part Number 1183504-R100-100-000
Ultra Librarian 3D Model Ultra Librarian R100-100-000 CAD Model

Description

The R100-100-000 is an electronic component manufactured by Hammond Manufacturing.

  • Win Source Part Number: 1183504-R100-100-000
  • Type: Box enclosure
  • Color: Beige
  • Design: Split sides
  • Features: PCB supports, Watertight
  • Package: Bulk
  • Material: Metal Aluminum
  • Rating: DIN 40050, IP66, NEMA 4X
  • Area: 15.5in² (100cm²)
  • Dimension: 3.937" L x 3.937" W (100.00mm x 100.00mm)
