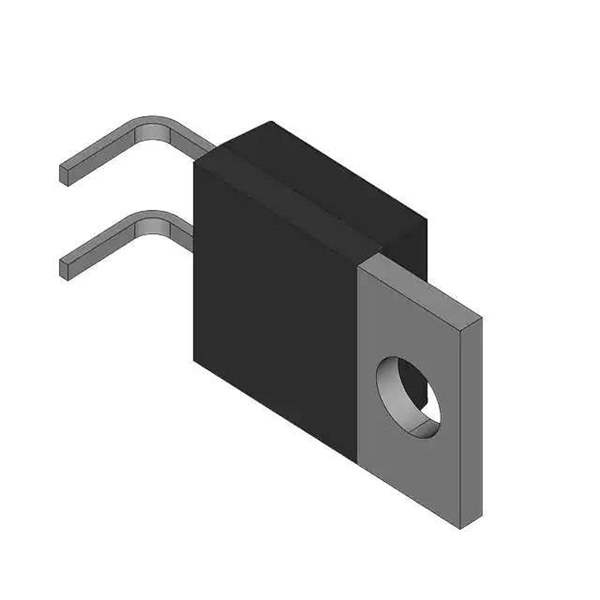

MUR810 Real Image
Same model may have multiple batches, images only for reference.

MUR810

Part No MUR810
Manufacturer Harris Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 8A TO220-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Harris Corporation
Series SWITCHMODE™
Package Tube
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 975 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -65°C ~ 175°C
Standard Package 533 pcs
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 850026-MUR810
Ultra Librarian 3D Model Ultra Librarian MUR810 CAD Model

Description

The 850026-MUR810 is a fast recovery rectifier diode designed for high-speed switching applications.

  • Maximum DC Reverse Voltage (Vr): 100V
  • Average Rectified Current (Io): 8A
  • Forward Voltage (Vf): 975mV @ 8A
  • Reverse Recovery Time (trr): 35ns
  • Mounting Type: Through-Hole
  • Package: TO-220-2
  • Operating Temperature: -65°C to 175°C
  • Product Status: Obsolete
  • Manufacturer: Harris Corporation
