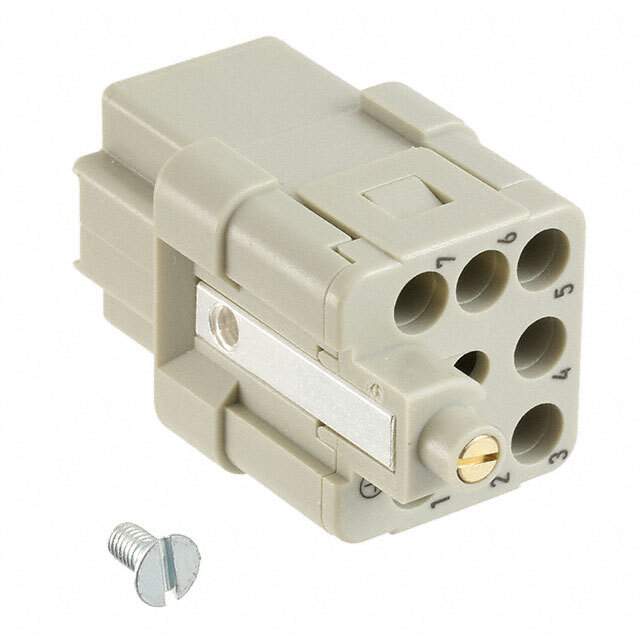

09120073101 Real Image1 09120073101 Real Image2
Same model may have multiple batches, images only for reference.
09120073101 Real Image1 09120073101 Real Image2
09120073101 Real Image1 09120073101 Real Image2
Same model may have multiple batches, images only for reference.

09120073101

Part No 09120073101
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description INSERT FEMALE 7POS CRIMP / Female Insert without Contacts Gray 7 Position Crimp
Datasheet
09120073101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han® Q
Package Bulk
Connector Type Insert without Contacts
Gender Female
Number of Positions 7
Size 3A
Termination Style Crimp
Voltage Rating 600V
Current Rating (Amps) 10A
Contact Type Han® DD
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material -
Contact Finish -
Material Flammability Rating UL94 V-0
Base Product Number 09120073
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 10 pcs
Win Source Part Number 1380444-09120073101
Ultra Librarian 3D Model Ultra Librarian 09120073101 CAD Model

Description

This particular Han® Q Insert is designed for 7-position configurations and features a crimp termination style.

  • Series: Han® Q
  • Number of Positions: 7
  • Termination Style: Crimp
  • Color: Gray
  • Contact Type: Han® DD
  • Material: Polycarbonate (PC)
  • Voltage Rating: 600V
  • Current Rating: 10A
  • Operating Temperature: -40°C ~ 125°C
  • Gender: Female
  • Package Quantity: 10 pcs
  • Packaging: Bulk
  • Manufacturer: HARTING
