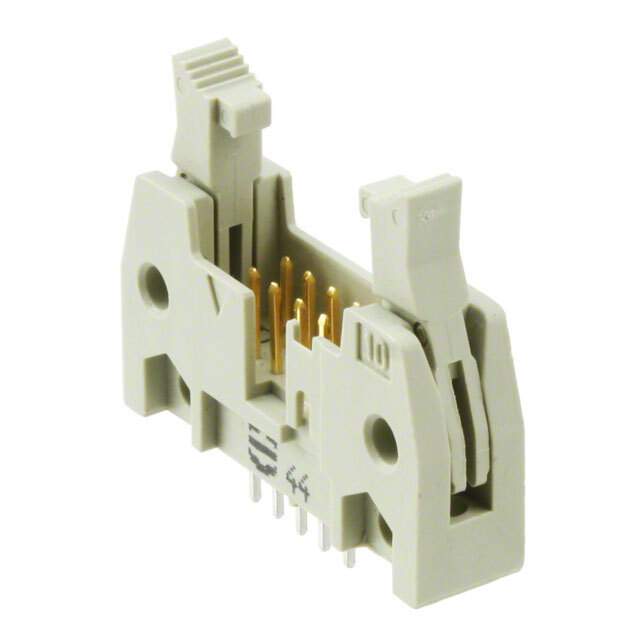

Part No	09185106904
Manufacturer	HARTING
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet	09185106904 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	HARTING
Series	SEK
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.228" (5.80mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.650" (16.51mm)
Insulation Height	0.681" (17.30mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853448-09185106904
Ultra Librarian 3D Model	Ultra Librarian 09185106904 CAD Model

Alternative Products

Product Part Number	Manufacturer	Package	Country	Similarity	Description

Description

The 853448-09185106904 is a male pin header connector from HARTING.

Series: SEK
Positions: 10
Features: Keying Slot, Mounting Flange
Mounting Type: Through-Hole
Pitch: 0.100" (2.54mm)
Contact Material: Copper Alloy
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Shrouded: 4 Walls
Temperature Range: -55°C to 125°C
Package: Tray
Standard Package: 100 pieces
