09360161301

Part No 09360161301
Manufacturer HARTING
Catalog Heavy Duty Connectors

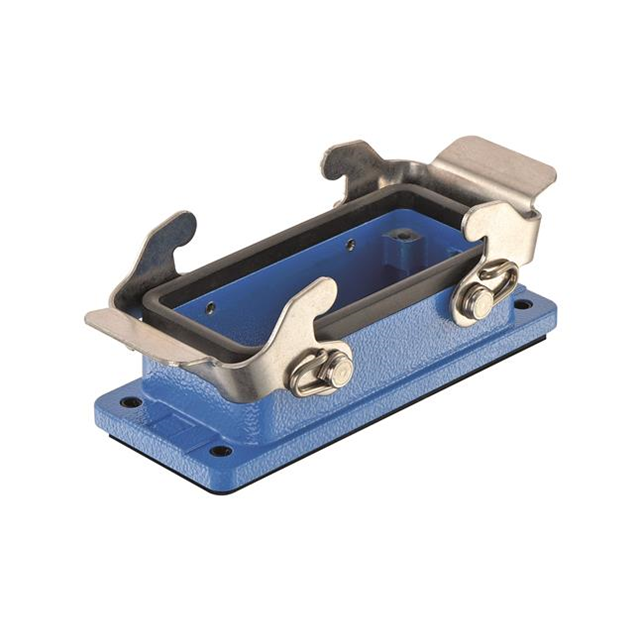

Description HAN 16B EX-HBM-DOUBLE LEVER / Base - Panel Mount Connector Bottom Entry 16B IP65 - Dust Tight, Water Resistant
Datasheet
09360161301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Connector Type Base - Panel Mount
Style Bottom Entry
Size 16B
Lock Location Locking Clip (2) on Base Bottom
Thread Size -
Size / Dimension -
Housing Color Blue
Features -
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Zinc Die Cast
Housing Finish -
Temperature Range - Operating -20°C ~ 40°C
Base Product Number 09360161
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380452-09360161301
Ultra Librarian 3D Model Ultra Librarian 09360161301 CAD Model

Description

The HARTING Han® B connector bases in the Han® B series are durable and versatile electronic components.

  • Series: Han® B
  • Housing Color: Blue
  • Entry Style: Bottom Entry
  • Housing Material: Zinc Die Cast
  • Ingress Protection: IP65
  • Operating Temperature: -20°C ~ 40°C
  • Packaging: Bulk
  • Manufacturer: HARTING
