09400160317 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

09400160317

Part No 09400160317
Manufacturer HARTING
Catalog Heavy Duty Connectors - Housings, Hoods, Bases

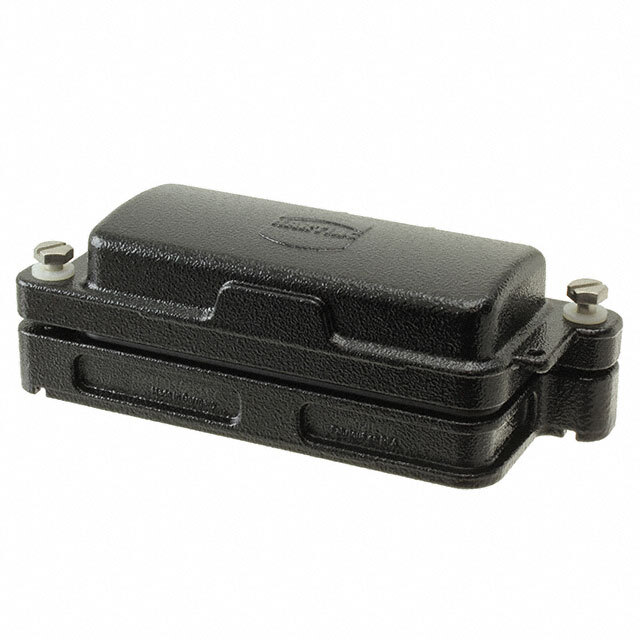

Description CONN BASE BOTTOM ENTRY SZ16B
Datasheet
09400160317 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Base - Panel Mount
Style Bottom Entry
Size 16B
Lock Location Screw Locks on Hood
Size / Dimension 6.496" L x 2.283" W x 1.138" H (165.00mm x 58.00mm x 28.90mm)
Housing Color Black
Features Cover
Ingress Protection IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1633561-09400160317
Ultra Librarian 3D Model Ultra Librarian 09400160317 CAD Model
