Same model may have multiple batches, images only for reference.

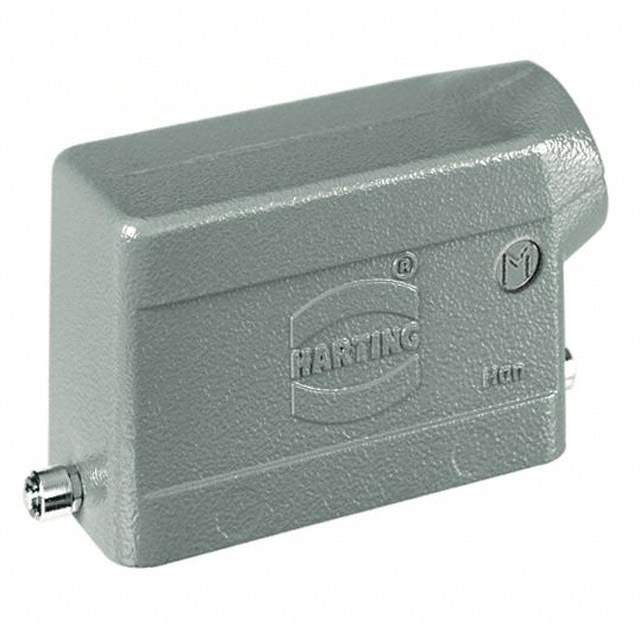

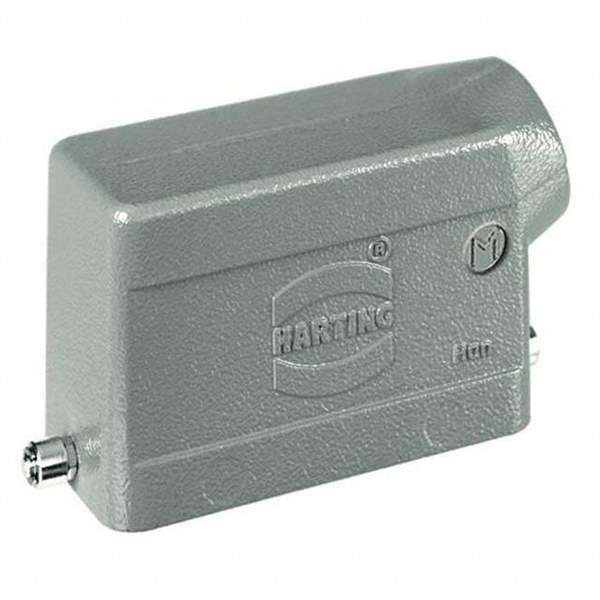

19300241542 Real Image
Same model may have multiple batches, images only for reference.

19300241542

Part No 19300241542
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD SIDE ENTRY SZ24B M32 / Hood Connector Side Entry M32 24B IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Product Status Active
Connector Type Hood
Style Side Entry
Size 24B
Lock Location Locking Clip (1) on Base Bottom
Thread Size M32
Size / Dimension 4.724" L x 1.693" W x 2.461" H (120.00mm x 43.00mm x 62.50mm)
Housing Color Gray
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19300241
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 905644-19300241542
Ultra Librarian 3D Model Ultra Librarian 19300241542 CAD Model

Description

The 905644-19300241542 is a heavy-duty connector housing from the Han® B series. It is a hood connector designed for side entry.

  • Series: Han® B
  • Type: Heavy-Duty Connector Housing
  • Configuration: Hood
  • Entry: Side Entry
  • Material: Aluminum Die-Cast
  • Color: Gray
  • Ingress Protection: IP65
  • Dimensions: 4.724" L x 1.693" W x 2.461" H (120.00mm x 43.00mm x 62.50mm)
  • Coating: Powder-Coated
  • Temperature Range: -40°C to 125°C
