09185267329

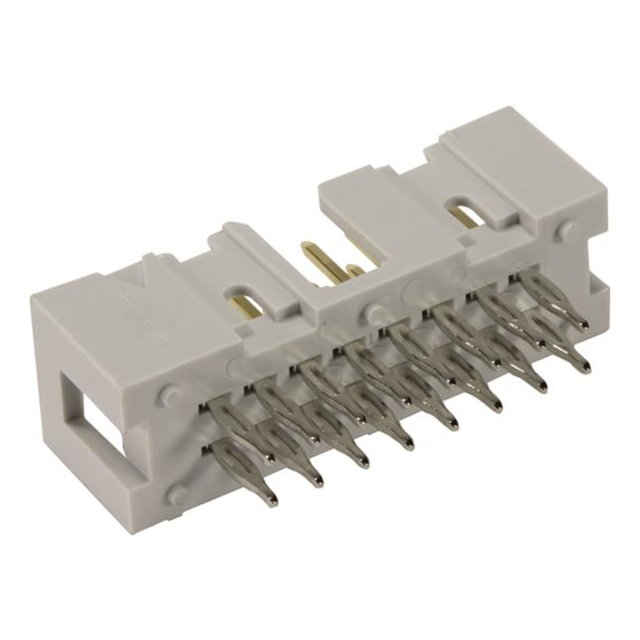

Name: 09185267329
Brand: HARTING
SKU: 1332526
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	09185267329
Manufacturer	HARTING
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 26POS 2.54MM / Connector Header Through Hole 26 position 0.100" (2.54mm)
Datasheet	09185267329 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	HARTING
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.217" (5.51mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	100
Win Source Part Number	1332526-09185267329
Ultra Librarian 3D Model	Ultra Librarian 09185267329 CAD Model

Alternative Products

Description

The HARTING 1332526-09185267329 is a male pin header connector that is ideal for use in a variety of applications.

Power: Low
Mounting: Through-Hole
Packaging: Bulk
Positions: 26
Pitch: 0.100" (2.54mm)
Design: Shrouded - 4 Wall
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Contact Type: Male Pin
Construction: Copper Alloy
Insulation Height: 0.350" (8.89mm)
Contact Length: 0.240" (6.10mm)
ROHS3 Compliant: Yes
Standard Package: 100
