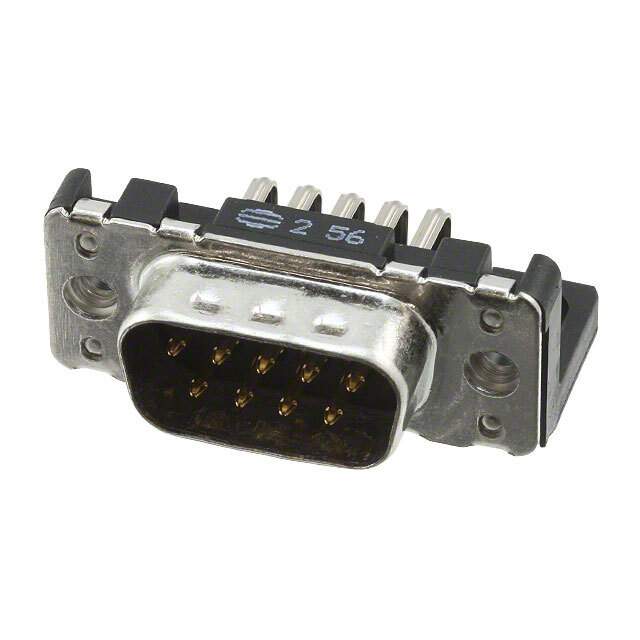

The HARTING D-Sub Connector Assembly is designed for use in electronic applications that require a connector with 9 positions.

• Positions: 9
• Packaging: Bulk
• Features: Board Lock, Grounding Indents
• Connector Type: Plug, Male Pins
• Contact Type: Signal
• Rows: 2
• Termination: Soldering
• Contact Form: Stamped
• Contact Material: Copper Alloy
• Connector Style: D-Sub
• Material Flammability Rating: UL94 V-0
• Standard Package: 100
• Mounting Style: Through-Hole, Right-Angle
• Housing/Shell Flange: Yes (4-40)
• Shell Material: Steel
• Dielectric Material: Polybutylene Terephthalate (PBT), Polyester, Glass-Filled
• Shell Size and Connector Layout: 1 (DE, E)
• Temperature Range: -55°C ~ 125°C
• Backset Spacing: 0.409" (10.40mm)
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Current Rating: 6.5A
• REACH Status: REACH Unaffected
• HTSUS: 8536.69.4040
• RoHS3 Compliant: Yes
