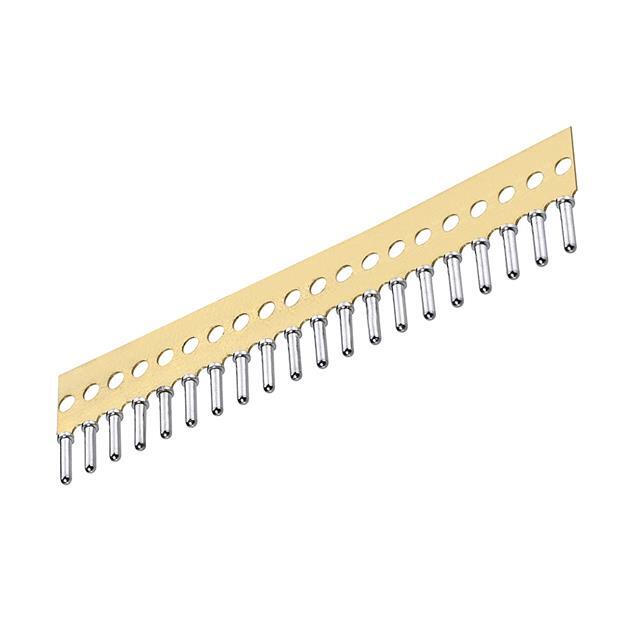

D01-9922046 Harwin Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

D01-9922046

Part No D01-9922046
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN SIL HDR MALE PIN 20POS TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type SIP, SIL - Header
Contact Type Post
Number of Positions 20
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Contact Finish Tin
Contact Finish Thickness 137.8µin (3.50µm)
Color Black
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1630138-D01-9922046
Ultra Librarian 3D Model Ultra Librarian D01-9922046 CAD Model
