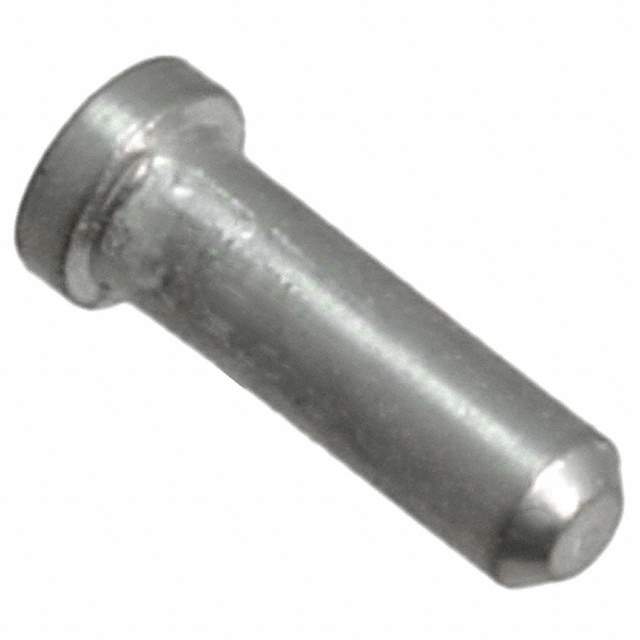

H3153-01 Real Image
Same model may have multiple batches, images only for reference.

H3153-01

Part No H3153-01
Manufacturer Harwin Inc.
Catalog Terminals
Description CONN PIN RCPT .018-.020 SOLDER / Pin Receptacle Connector 0.018" ~ 0.020" (0.46mm ~ 0.51mm) No Tail Solder
Datasheet
H3153-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin Receptacles, Socket Connectors
Mfr Harwin Inc.
Package Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.142" (3.61mm)
Accepts Pin Diameter 0.018" ~ 0.020" (0.46mm ~ 0.51mm)
Pin Hole Diameter 0.043" (1.09mm)
Mounting Hole Diameter 0.039" ~ 0.043" (0.99mm ~ 1.09mm)
Flange Diameter 0.057" (1.45mm)
Socket Depth 0.124" (3.15mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 3.94µin (0.10µm)
Temperature Range - Operating -55°C ~ 125°C
Base Product Number H3153
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351822-H3153-01
Ultra Librarian 3D Model Ultra Librarian H3153-01 CAD Model

Description

The Harwin Inc. H3153-01 is a PC pin receptacle that belongs to the Terminals - PC Pin Receptacles, Socket Connectors category.

  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94µin (0.10µm)
  • Contact Material: Beryllium Copper
  • Packaging: Bulk
  • Standard Package: 1,000
  • Overall Length: 0.142" (3.61mm)
  • Tail Type: No Tail
  • Accepts Pin Diameter: 0.018" ~ 0.020" (0.46mm ~ 0.51mm)
  • Mounting Hole Diameter: 0.039" ~ 0.043" (0.99mm ~ 1.09mm)
  • Flange Diameter: 0.057" (1.45mm)
  • Socket Depth: 0.124" (3.15mm)
  • Insertion Force: Not Specified
  • Operating Temperature: -55°C ~ 125°C
  • Pin Hole Diameter: 0.043" (1.09mm)
  • Board Thickness: Not Specified
  • ECCN: EAR99
  • REACH Status: Unaffected
