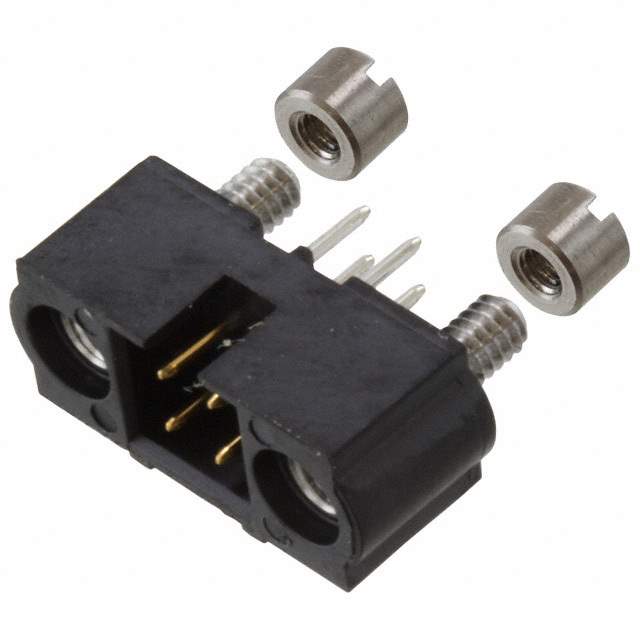

M80-5100442 Real Image
Same model may have multiple batches, images only for reference.

M80-5100442

Part No M80-5100442
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2MM / Connector Header Through Hole 4 position 0.079" (2.00mm)
Datasheet
M80-5100442 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Insulation Material Polyphenylene Sulfide (PPS) , Glass Filled
Features Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.2A
Voltage Rating 800V
Mated Stacking Heights 7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number M80-510
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352197-M80-5100442
Contact Material Phosphor Bronze
Contact Finish - Post Tin
Contact Finish Thickness - Mating 29.5µin (0.75µm)
Contact Finish - Mating Gold
Contact Shape Circular
Insulation Height 0.220" (5.60mm)
Contact Length - Post 0.130" (3.30mm)
Fastening Type Threaded
Termination Solder
Mounting Type Through Hole
Shrouding Shrouded - 4 Wall
Style Board to Board or Cable
Number of Positions Loaded All
Row Spacing - Mating 0.079" (2.00mm)
Number of Rows 2
Number of Positions 4
Pitch - Mating 0.079" (2.00mm)
Contact Type Male Pin
Connector Type Header
Package Tube
Series Datamate J-Tek
Mfr Harwin Inc.
Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Ultra Librarian 3D Model Ultra Librarian M80-5100442 CAD Model

Description

The Datamate J-Tek series male pin header is a high-quality connector designed for board-to-board or cable applications. Bold the product name and manufacturer

  • Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
  • Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Voltage Rating: 800V
  • Current Rating (Amps): 2.2A
  • Shrouding: Shrouded - 4 Wall
  • Number of Rows: 2
  • Number of Positions Loaded: All
  • Number of Positions: 4
  • Contact Material: Phosphor Bronze
  • Contact Finish - Mating: Gold
  • Contact Finish - Post: Tin
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Length - Post: 0.130" (3.30mm)
  • Contact Length - Mating: Undefined
  • Operating Temperature: -55°C ~ 125°C
  • Package: Tube
  • Package: 18
