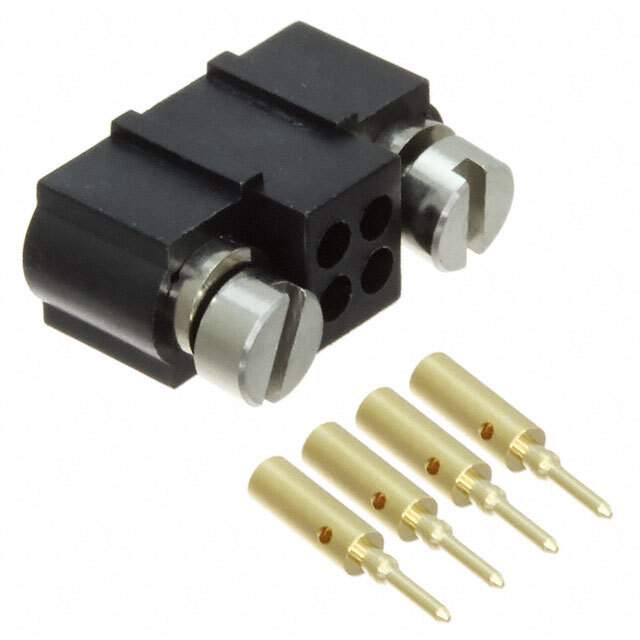

Same model may have multiple batches, images only for reference.

M80-5620405

Name: M80-5620405
Brand: Harwin Inc.
SKU: 1341307
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M80-5620405
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER 4P CRIMP 22AWG GOLD / 4 Position Rectangular Header Connector Crimp Gold 22 AWG
Datasheet	M80-5620405 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Number of Positions	4
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Cable Termination	Crimp
Wire Type	Discrete
Wire Gauge	22 AWG
Features	Jackscrews
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Color	Black
Base Product Number	M80-562
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1341307-M80-5620405
Ultra Librarian 3D Model	Ultra Librarian M80-5620405 CAD Model

Alternative Products

Description

The M80-5620405 is a 4-position header connector from the Datamate J-Tek series.

Pitch: 0.079" (2.00mm)
Contact Type: male pin
Fastening Type: jackscrews
Packaging: bulk
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Finish: gold plated
Wire Gauge: 22 AWG
Termination: crimp
Temperature Range: -55°C to 125°C
Manufacturer: Harwin Inc.
