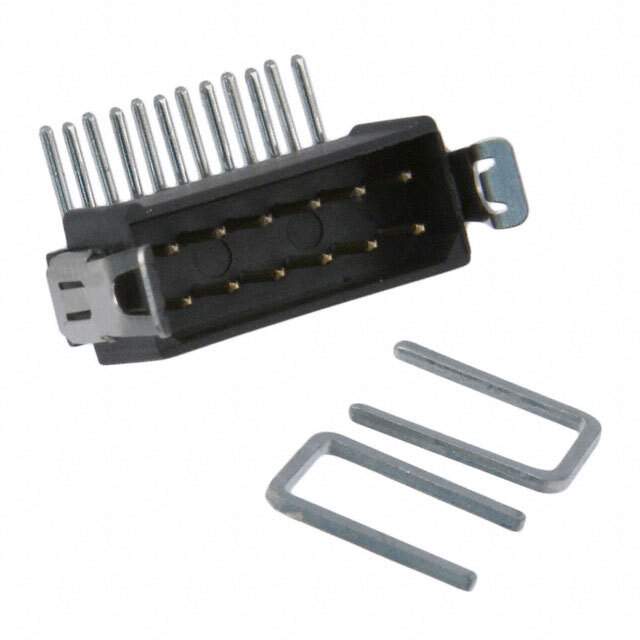

M80-8511242

Name: M80-8511242
Brand: Harwin Inc.
SKU: 1332456
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M80-8511242
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 12POS 2MM / Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
Datasheet	M80-8511242 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.235" (5.97mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Strain Relief Clips
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-851
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	M808511242,952-1131-5
Standard Package	16
Win Source Part Number	1332456-M80-8511242
Ultra Librarian 3D Model	Ultra Librarian M80-8511242 CAD Model

Alternative Products

Description

The M80-8511242 is a rectangular connector header from Harwin Inc.

Manufacturer: Harwin Inc.
Type: Rectangular Connector Header
Status: High Popularity, Limited Supply and Demand
Features: High Reliability, Low Contact Resistance, and High Current Rating
Applications: Computers, Telecommunications, and Industrial Equipment
