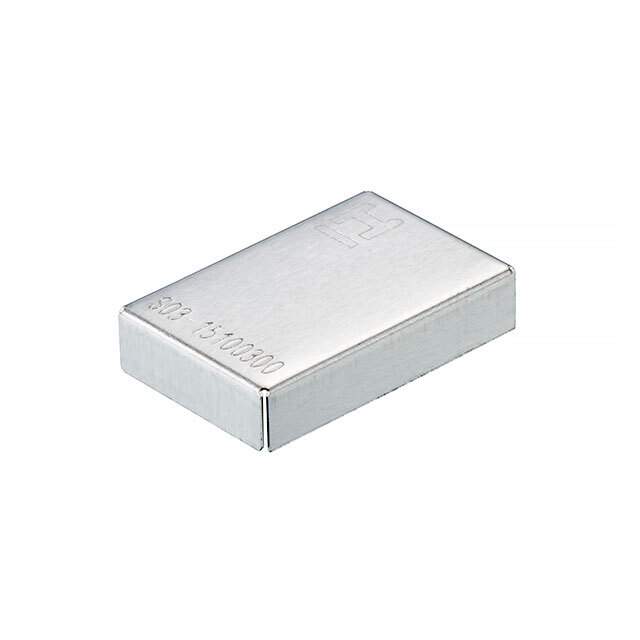

S03-15100300R Real Image
Same model may have multiple batches, images only for reference.

S03-15100300R

Part No S03-15100300R
Manufacturer Harwin Inc.
Catalog RF Shields
Description RF SHIELD 0.394" X 0.591" SMD / RF Shield CAN 0.394" (10.00mm) X 0.591" (15.00mm) Non-Vented Surface Mount
Datasheet
S03-15100300R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Shields
Mfr Harwin Inc.
Series EZ BoardWare
Package Tape & Reel
Type CAN
Height - Overall 0.118" (3.00mm)
Length - Overall 0.591" (15.00mm)
Width - Overall 0.394" (10.00mm)
Ventilation Non-Vented
Mounting Type Surface Mount
Base Product Number S03-15
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.90.9800
Win Source Part Number 1349894-S03-15100300R
Ultra Librarian 3D Model Ultra Librarian S03-15100300R CAD Model

Description

The S03-15100300R is an RF shield manufactured by Harwin Inc. It is part of the EZ BoardWare series and is designed for use with CAN type electronic systems.

  • Manufacturer: Harwin Inc.
  • Series: EZ BoardWare
  • System Type: CAN
  • Package: Tape and Reel
  • Standard Package Quantity: 900
  • Length: 0.591" (15.00mm)
  • Height: 0.118" (3.00mm)
  • Width: 0.394" (10.00mm)
  • Mounting Type: Surface Mount
  • Ventilation: Non-Vented
